Suspension parts exhaust for BMW 5 Series E12 528 (1977)

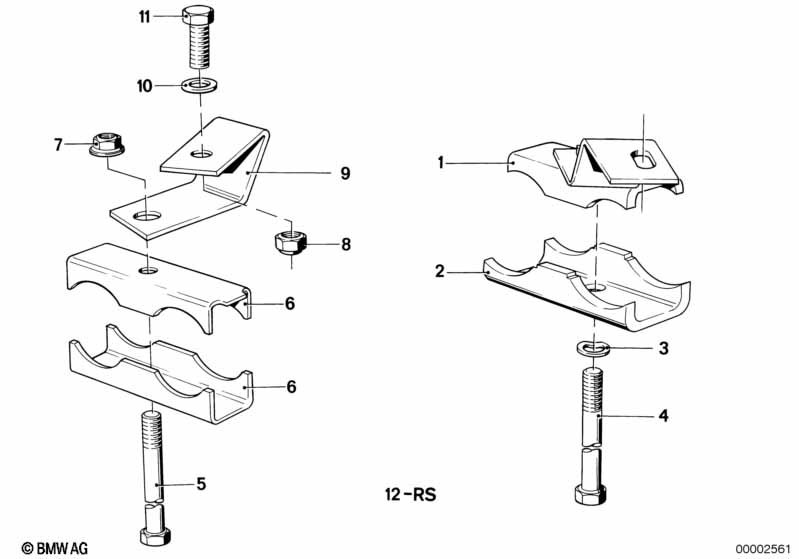

This Suspension parts exhaust technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 05/1976 | 18211245369 | $6.84 | Shop at ECS Tuning | ||||
| 02 | Pipe clamp | 1 | 05/1976 | 18211246379 | $5.37 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B8 | 1 | 05/1976 | 06/1981 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | |
| 04 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 05 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 06 | Pipe clamp | 2 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Support | 1 | 18211246858 | $6.98 | Shop at ECS Tuning | |||||
| 10 | Washer | A10,5X22 | 1 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X35 | 1 | 07119913843 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Set mounting parts | 1 | 05/1976 | 18211246084 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Suspension parts exhaust?
- This technical diagram illustrates the Suspension parts exhaust within the Exhaust system group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #18211245369).
- Which models use the hardware listed in this Suspension parts exhaust?
- The hardware and components featured in the Suspension parts exhaust are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Support (18211245369) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suspension parts exhaust assembly?
- Each item in the Suspension parts exhaust corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 18211245369 for the Exhaust system section.
