Exhaust pipe front for BMW 5 Series E12 525 (1981)
This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Exhaust pipe | 1 | 18111102469 | $99.32 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 04 | Gasket Asbestos Free | 2 | 18111723843 | $10.83 | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Flange | 2 | 18111102366 | $33.77 | Shop at ECS Tuning | |||||
| 08 | Gasket ring asbesto-free | 2 | 18119067822 | $7.54 | Shop at ECS Tuning | |||||
| 09 | Conical ring | 42MM | 1 | 18111245489 | $5.47 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exhaust pipe | X | 18111102469 | $99.32 | ENDED | Shop at ECS Tuning | ||||
| -- | Exhaust pipe front | ZYL.1-3 | X | 18111246262 | $127.67 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X43-8.8-ZNS3 | 6 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Hex nut wiht flange | M8 | 6 | 18307620549 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Exhaust pipe front?

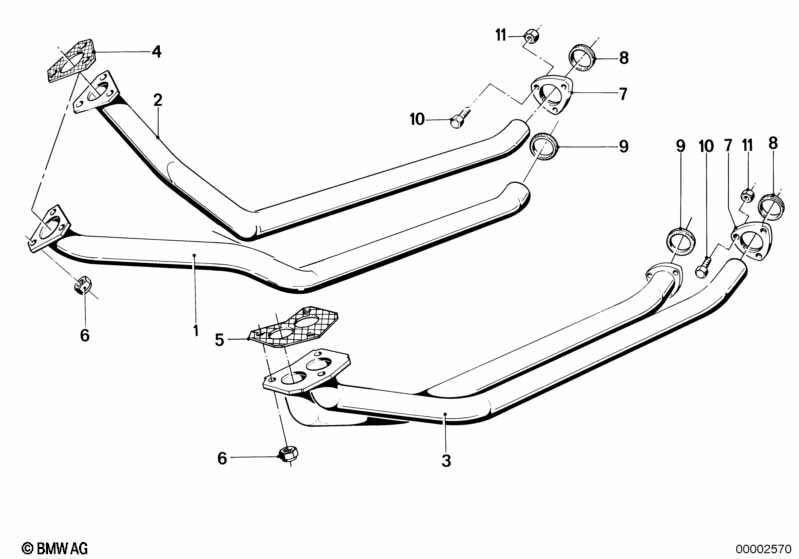

- This technical diagram illustrates the Exhaust pipe front within the Exhaust system group for the 5 Series E12 525 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipe (Part #18111102469).
