Exhaust assy without catalyst for BMW 7 Series E23 728i (1982)

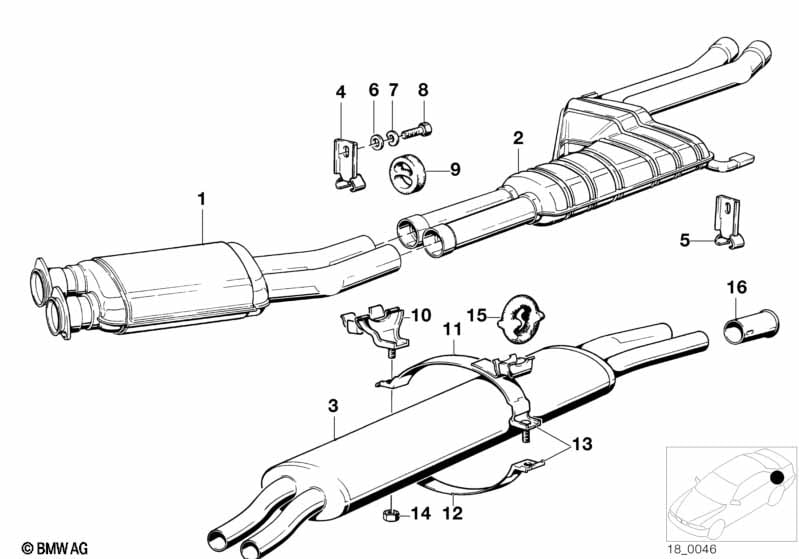

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18121175333 | $202.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Center muffler | 1 | 09/1981 | 18121175684 | $216.50 | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 02 | Center muffler | 1 | 09/1981 | 18121175684 | $216.50 | Shop at ECS Tuning | ||||
| 03 | Rear muffler | 1 | 18121175335 | $293.38 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear muffler | 1 | 18301707045 | $283.38 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 03 | Rear muffler | 1 | 09/1981 | 18121175803 | $235.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Holder | 1 | 09/1981 | 18211246568 | $4.92 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | 1 | 09/1981 | 18211246568 | $4.92 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 2 | 08/2000 | 18211105638 | $4.23 | ENDED | Shop at ECS Tuning | |||
| 09 | Rubber Ring | 2 | 18211105635 | $4.83 | Shop at ECS Tuning | |||||
| 09 | Rubber Ring | 2 | 18211105677 | $3.31 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 18211246123 | $16.62 | Shop at ECS Tuning | |||||
| 11 | Clamp | 1 | 18211246627 | $20.80 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 18211246628 | $13.14 | Shop at ECS Tuning | |||||
| 14 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 15 | Rubber Ring | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 16 | Tailpipe tip, chrome | 46 MM | 2 | 82119413968 | $23.81 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 16 | Tailpipe tip, chrome | 42 MM | 2 | 09/1979 | 09/1984 | 82119413973 | $48.12 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
