Exhaust pipe front for BMW 7 Series E23 733i (1985)

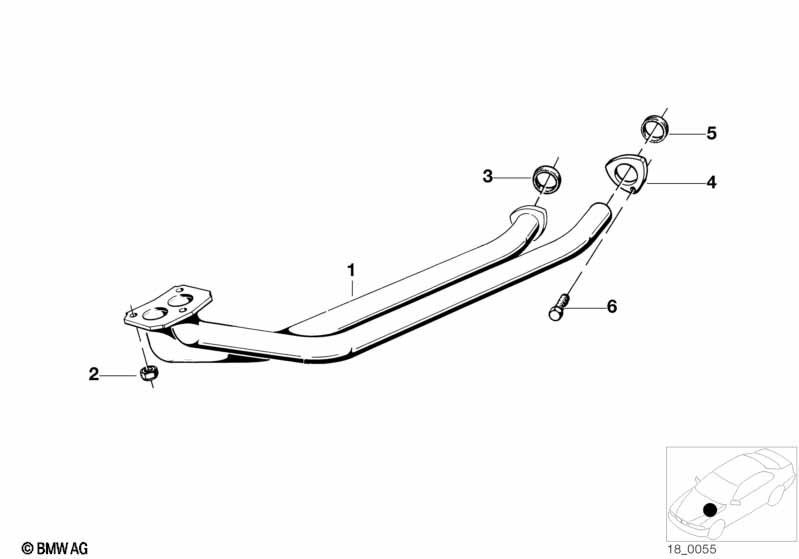

This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | 1 | 04/1983 | 18113908133 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Conical ring | 42MM | 1 | 18111245489 | $5.47 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 42MM | 1 | 18112904727 | Shop at ECS Tuning | |||||
| 04 | Flange | 1 | 18113901065 | Shop at ECS Tuning | ||||||
| 05 | Gasket ring asbesto-free | 1 | 18119067822 | $7.54 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X43-8.8-ZNS3 | 6 | 07119903076 | $0.71 | Shop at ECS Tuning |
