Exhaust assy without catalyst for BMW 7 Series E23 730 (1979)

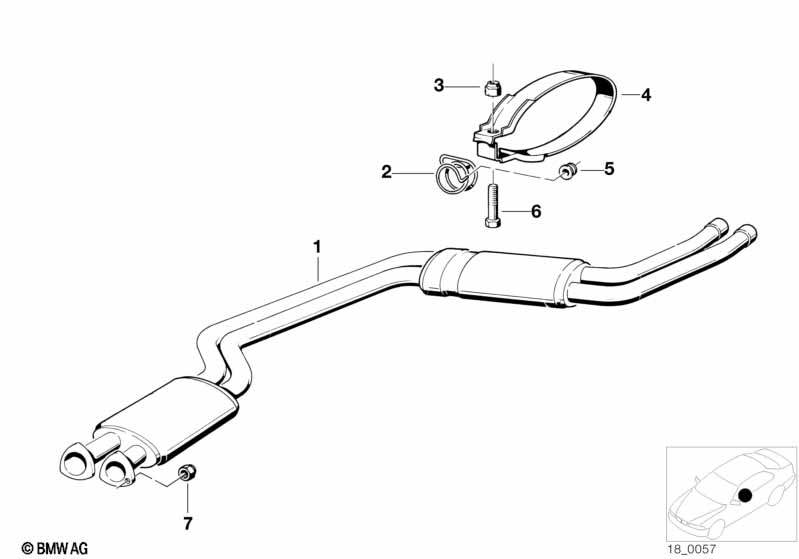

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust system | 1 | 04/1983 | 18123907037 | Shop at ECS Tuning | |||||
| 01 | Exhaust system | 1 | 04/1983 | 18123909075 | Shop at ECS Tuning | |||||
| 02 | Spring | 1 | 18211246857 | $16.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spring | 1 | 18213907066 | Shop at ECS Tuning | ||||||
| 03 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Clamp | 1 | 18211246313 | $5.34 | Shop at ECS Tuning | |||||
| 04 | Clamp | 1 | 18213907069 | Shop at ECS Tuning | ||||||
| 05 | Grommet | 1 | 18211246315 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 05 | Grommet | 1 | 18213907067 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | M8X45 | 1 | 07119913681 | $0.54 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M8 | 6 | 18307620549 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 730 Exhaust assy without catalyst?
- This technical diagram illustrates the Exhaust assy without catalyst within the Exhaust system group for the 7 Series E23 730 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust system (Part #18123907037).
- Which models use the hardware listed in this Exhaust assy without catalyst?
- The hardware and components featured in the Exhaust assy without catalyst are specific to the 7 Series E23 730 produced during 1979. These technical specifications ensure that parts like the Exhaust system (18123907037) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust assy without catalyst assembly?
- Each item in the Exhaust assy without catalyst corresponds to the numbered list below the illustration. For the 7 Series E23 730, you can identify the Exhaust system by locating its position on the schematic, which then links to the official BMW part number 18123907037 for the Exhaust system section.
