Exhaust system for BMW 3 Series E21 320 (1979)

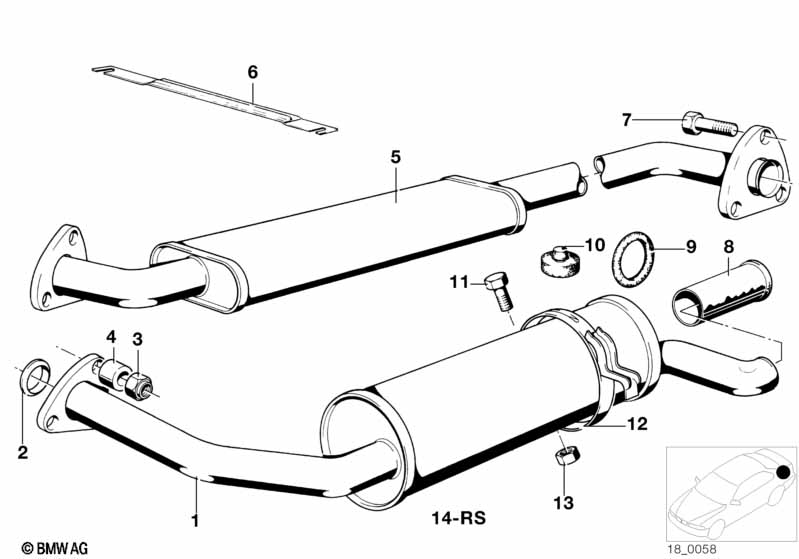

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 10/1978 | 18121175026 | $166.14 | Shop at ECS Tuning | ||||
| 02 | Conical ring | 42MM | 1 | 18111245489 | $5.47 | Shop at ECS Tuning | ||||
| 03 | Hex nut wiht flange | M8 | 3 | 18307620549 | Shop at ECS Tuning | |||||
| 04 | Bush | 3 | 32111114805 | $3.82 | Shop at ECS Tuning | |||||
| 05 | Front muffler | 1 | 10/1978 | 18121175024 | $144.27 | Shop at ECS Tuning | ||||
| 06 | Bow | 1 | 18211246451 | $6.70 | Shop at ECS Tuning | |||||
| 07 | Hexagon bolt | M8X65 | 3 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X65 | 3 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 08 | Tailpipe tip, chrome | 46 MM | 1 | 82119413970 | $28.83 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 2 | 18211245114 | Shop at ECS Tuning | ||||||
| 10 | Stop buffer | 1 | 18211246003 | $1.05 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 18211175957 | $18.52 | ENDED | Shop at ECS Tuning | ||||
| 13 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Set mounting parts | 1 | 18211246471 | $29.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
