Rear muffler for BMW 3 Series E21 320i (1982)

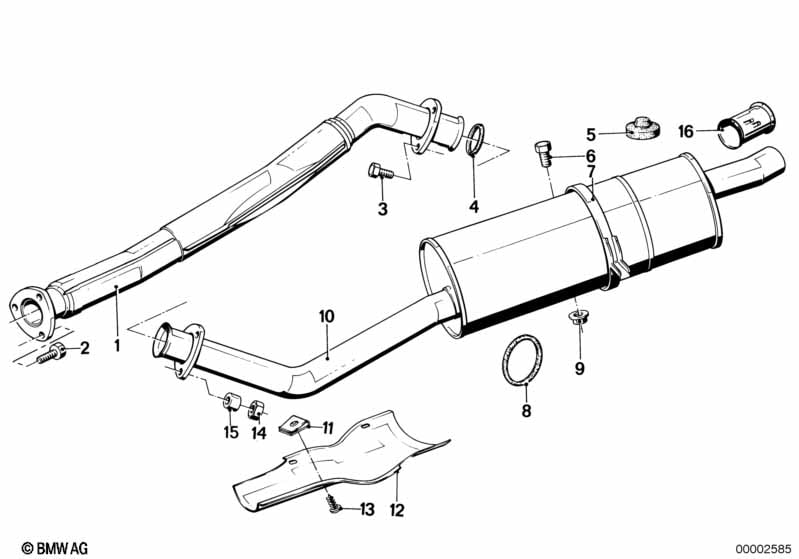

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | 1 | 09/1979 | 18111175245 | $393.42 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | M8X35 | 3 | 09/1979 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 03 | Hexagon bolt | M8X65 | 3 | 09/1979 | 02/2000 | 07119903018 | Shop at ECS Tuning | |||
| 03 | Hex bolt | M8X65 | 3 | 09/1979 | 41117006311 | $6.28 | Shop at ECS Tuning | |||
| 04 | Conical ring | 42MM | 1 | 09/1979 | 18111245489 | $5.47 | Shop at ECS Tuning | |||
| 05 | Stop buffer | 1 | 09/1979 | 18211246003 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 09/1979 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X25 | 1 | 09/1979 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 07 | Clamp | 1 | 09/1979 | 18211175957 | $18.52 | ENDED | Shop at ECS Tuning | |||
| 08 | Rubber Ring | 2 | 09/1979 | 18211245114 | Shop at ECS Tuning | |||||
| 09 | Collar nut | M8-8-SC-ZNNIV | 1 | 09/1979 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 10 | Rear muffler | 1 | 12/1979 | 18121175537 | $217.68 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST6,3-10 | 3 | 09/1979 | 07129901672 | $0.35 | Shop at ECS Tuning | |||
| 11 | Nut | 3 | 09/1979 | 18211176168 | $0.61 | Shop at ECS Tuning | ||||
| 12 | Grass fire protection shield | 1 | 09/1979 | 18211175297 | $20.88 | Shop at ECS Tuning | ||||
| 13 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 3 | 09/1979 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 14 | Hex nut wiht flange | M8 | 6 | 09/1979 | 18307620549 | Shop at ECS Tuning | ||||
| 15 | Bush | 3 | 09/1979 | 32111114805 | $3.82 | Shop at ECS Tuning | ||||
| 16 | Tailpipe tip, chrome | 46 MM | 1 | 09/1979 | 82119413970 | $28.83 | Shop at ECS Tuning |
