Exhaust pipe, catalytic converter for BMW 3 Series E30 318i

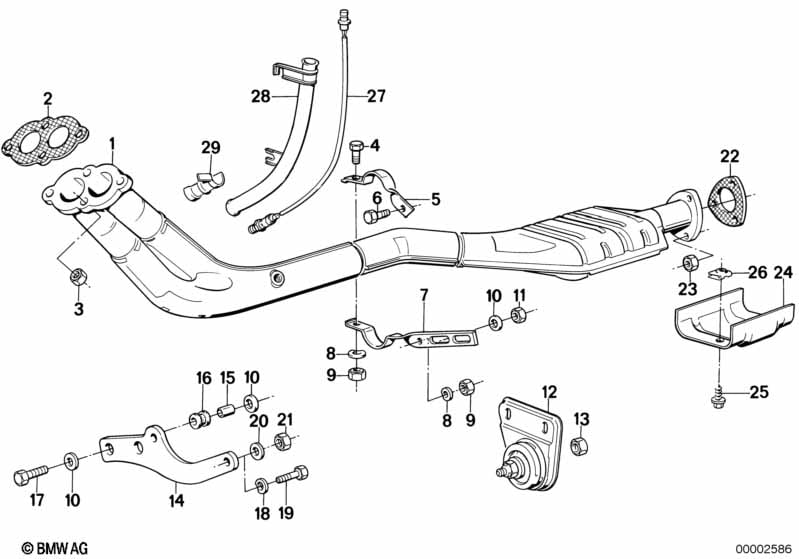

This Exhaust pipe, catalytic converter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe catalytic converter | 1 | 12/1984 | 11769059152 | $1236.46 | ENDED | Shop at ECS Tuning | |||
| 01 | Exhaust pipe, catalytic converter | 1 | 12/1984 | 11761706335 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 18111728364 | $16.50 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Bow | 59MM | 1 | 11761277911 | $5.92 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Holder | 59MM | 1 | 11761285101 | $4.17 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B8 | 2 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M8-8-ZNNIV SI | 2 | 07129905767 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | 6 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6-10 ZN | 2 | 08/1985 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 11761278553 | $12.31 | Shop at ECS Tuning | |||||
| 16 | Joint sleeve | 4 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M6X30-8.8-ZNS3 | X | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X18-8.8-ZNS3 | X | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 18 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 22 | Gasket Asbestos Free | 1 | 18301723886 | $10.83 | Shop at ECS Tuning | |||||
| 23 | Hex nut wiht flange | M8 | 3 | 18307620549 | Shop at ECS Tuning | |||||
| 24 | Grass fire protection shield | 1 | 18221176254 | $6.45 | ENDED | Shop at ECS Tuning | ||||
| 25 | Hex head screw | ST6,3X16-C-Z2-Z | 2 | 07119916966 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 26 | Nut | 2 | 18211176168 | $0.61 | Shop at ECS Tuning | |||||
| 27 | Oxygen sensor | 1 | 12/1984 | 11761277565 | $267.20 | ENDED | Shop at ECS Tuning | |||
| 27 | Oxygen sensor | 1 | 12/1984 | 11761466063 | $81.55 | Shop at ECS Tuning | ||||
| 27 | Oxygen sensor | L=760MM | 1 | 12/1984 | 11781715263 | $265.55 | Shop at ECS Tuning | |||
| 28 | Pipe | 1 | 12/1984 | 11781715342 | $19.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
