Exhaust support for BMW 7 Series E23 733i (1982)
This Exhaust support technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 18211246520 | $9.57 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket | 1 | 18211246075 | $1.91 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | X | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 05 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Pipe clamp | 1 | 18211246523 | $2.74 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 12 | Set mounting parts | 1 | 18211246917 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Exhaust support?

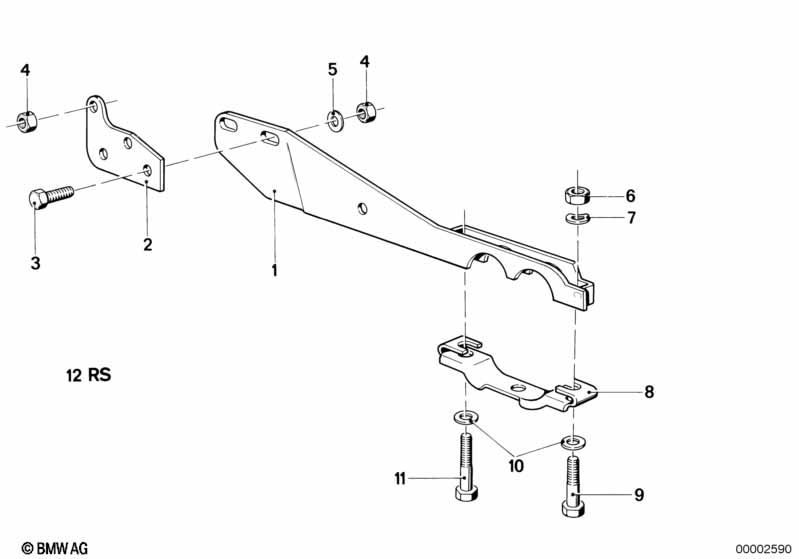

- This technical diagram illustrates the Exhaust support within the Exhaust system group for the 7 Series E23 733i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Carrier (Part #18211246520).
