Suspension parts exhaust for BMW 5 Series E28 M535i (1987)

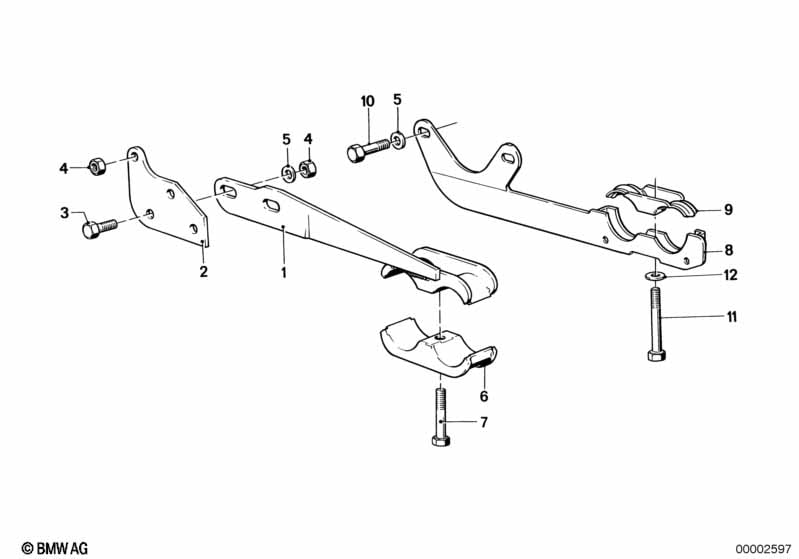

This Suspension parts exhaust technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with 5-speed sports gearbox |
=Yes |
|||||||||
| 01 | Exhaust support | 1 | 18211175778 | $27.11 | Shop at ECS Tuning | |||||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 06 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| For vehicles with 5-speed sports gearbox |
=Yes |
|||||||||
| 06 | Pipe clamp | 1 | 18211175787 | $11.57 | Shop at ECS Tuning | |||||
| For vehicles with 5-gear transmission |
=Yes |
|||||||||
| 08 | Exhaust support | 1 | 09/1985 | 18211177279 | $16.38 | Shop at ECS Tuning | ||||
| 09 | Pipe clamp | 1 | 09/1985 | 18211176717 | $11.57 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X20-ZNNIV SI | 2 | 09/1985 | 07119903039 | Shop at ECS Tuning | ||||
| 11 | Hexagon bolt | M8X65 | 1 | 09/1985 | 07119903018 | Shop at ECS Tuning | ||||
| 12 | Washer | A8,4 | 1 | 09/1985 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
