Exhaust assy without catalyst for BMW 5 Series E28 520i (1987)

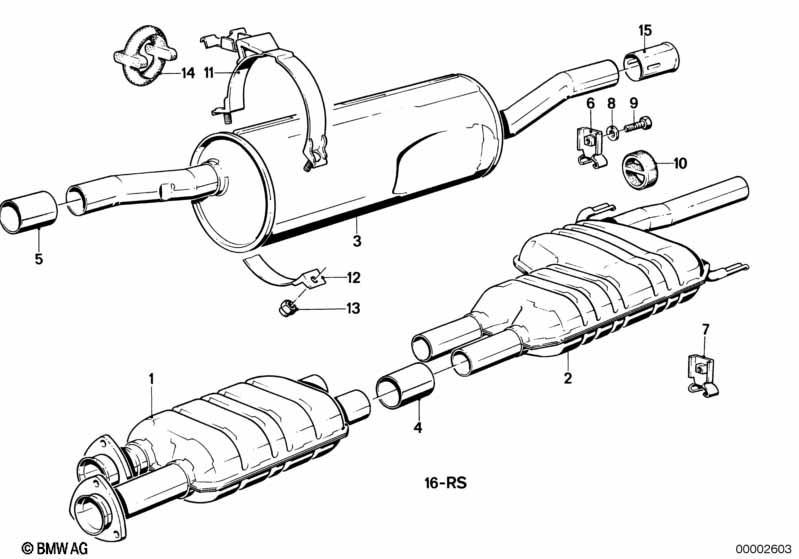

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.

Exhaust assy without catalyst
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front muffler 1 18121175748 $113.83 Shop at ECS Tuning
01 Front muffler 1 18121175748 $113.83 Shop at ECS Tuning
02 Center muffler 1 18121175746 $145.08 Shop at ECS Tuning
02 Center muffler 1 18121175746 $145.08 Shop at ECS Tuning
03 Rear muffler 1 18121175747 $183.42 Shop at ECS Tuning
03 Rear muffler 1 18121175747 $183.42 Shop at ECS Tuning
For vehicles with
Thailand version
=Yes
03 Rear muffler 1 18121176114 ENDED Shop at ECS Tuning
03 Rear muffler 1 18121176114 ENDED Shop at ECS Tuning
For vehicles with
National version Switzerland
and
Sweden version
L804A=Yes

=Yes
03 Rear muffler 1 18121175747 $183.42 Shop at ECS Tuning
03 Rear muffler 1 18121175747 $183.42 Shop at ECS Tuning
04 Clamping bush D=42 X 70MM 2 18307536422 Shop at ECS Tuning
04 Clamping bush D=42 X 70MM 2 18307536422 Shop at ECS Tuning
05 Welding sleeve D=55MM 1 18121175754 $5.86 ENDED Shop at ECS Tuning
05 Welding sleeve D=55MM 1 18121175754 $5.86 ENDED Shop at ECS Tuning
05 Clamping bush D=55 X 70MM 1 18307560778 $34.61 Shop at ECS Tuning
05 Clamping bush D=55 X 70MM 1 18307560778 $34.61 Shop at ECS Tuning
06 Holder 1 18211175445 $5.79 Shop at ECS Tuning
06 Holder 1 18211175445 $5.79 Shop at ECS Tuning
07 Holder 1 18211175445 $5.79 Shop at ECS Tuning
07 Holder 1 18211175445 $5.79 Shop at ECS Tuning
08 Washer A8,4 2 33311108205 $0.16 Shop at ECS Tuning
08 Washer A8,4 2 33311108205 $0.16 Shop at ECS Tuning
09 Collar nut M8-8-SC-ZNNIV 2 07119906089 $0.32 Shop at ECS Tuning
09 Collar nut M8-8-SC-ZNNIV 2 07119906089 $0.32 Shop at ECS Tuning
09 Hex bolt M8X16-10.9-PHR 2 07119913612 $0.62 Shop at ECS Tuning
09 Hex bolt M8X16-10.9-PHR 2 07119913612 $0.62 Shop at ECS Tuning
10 Rubber Ring 2 18211105635 $4.83 Shop at ECS Tuning
10 Rubber Ring 2 18211105635 $4.83 Shop at ECS Tuning
11 Clamp 1 18211175707 $30.59 Shop at ECS Tuning
11 Clamp 1 18211175707 $30.59 Shop at ECS Tuning
12 Clamp 1 18211175710 $3.64 Shop at ECS Tuning
12 Clamp 1 18211175710 $3.64 Shop at ECS Tuning
13 Collar nut M8-8-SC-ZNNIV 2 07119906089 $0.32 Shop at ECS Tuning
13 Collar nut M8-8-SC-ZNNIV 2 07119906089 $0.32 Shop at ECS Tuning
14 Rubber Ring 1 18211712838 $5.72 Shop at ECS Tuning
14 Rubber Ring 1 18211712838 $5.72 Shop at ECS Tuning
15 Tailpipe tip, chrome 51 MM 1 82119413967 $15.63 Shop at ECS Tuning
15 Tailpipe tip, chrome 51 MM 1 82119413967 $15.63 Shop at ECS Tuning
16 Set mounting parts 1 18211176906 $34.04 ENDED Shop at ECS Tuning
16 Set mounting parts 1 18211176906 $34.04 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

EXHAUST SYSTEM WITH CATALYST EXHAUST SYSTEM WITH CATALYST
EXHAUST ASSY WITHOUT CATALYST EXHAUST ASSY WITHOUT CATALYST
EXHAUST SYSTEM EXHAUST SYSTEM
EXHAUST PIPE FRONT EXHAUST PIPE FRONT
EXHAUST SYSTEM, REAR EXHAUST SYSTEM, REAR
SUSPENSION PARTS EXHAUST SUSPENSION PARTS EXHAUST
