Exhaust system for BMW 6 Series E24 633CSi (1982)

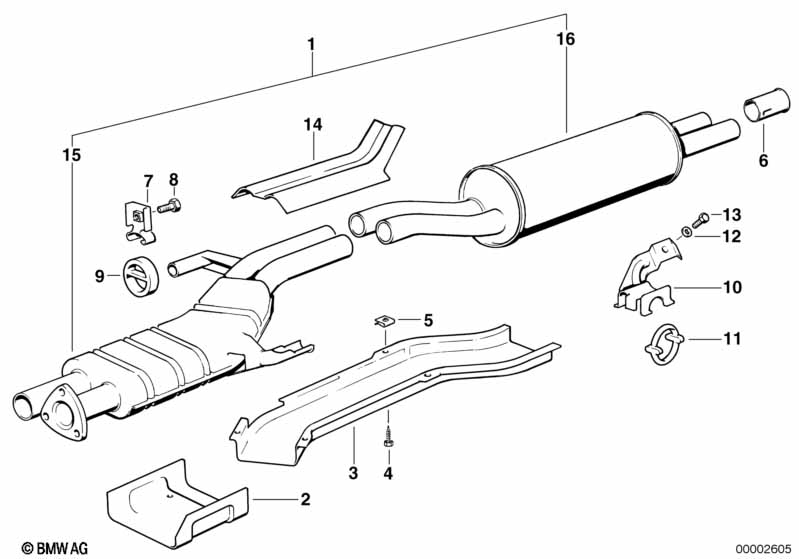

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust system | 1 | 09/1981 | 09/1982 | 18121176205 | $1083.45 | Shop at ECS Tuning | |||
| 01 | Exhaust system | 1 | 09/1981 | 09/1982 | 18121176205 | $1083.45 | Shop at ECS Tuning | |||
| 02 | Grass fire protection shield | 1 | 09/1981 | 18111176170 | $6.02 | Shop at ECS Tuning | ||||
| 02 | Grass fire protection shield | 1 | 09/1981 | 18111176170 | $6.02 | Shop at ECS Tuning | ||||
| 03 | Grass fire protection shield | 1 | 09/1981 | 18121176210 | $17.88 | Shop at ECS Tuning | ||||
| 03 | Grass fire protection shield | 1 | 09/1981 | 18121176210 | $17.88 | Shop at ECS Tuning | ||||
| 04 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 7 | 09/1981 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 04 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 7 | 09/1981 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 05 | Nut | 7 | 09/1981 | 18211176168 | $0.61 | Shop at ECS Tuning | ||||
| 05 | Nut | 7 | 09/1981 | 18211176168 | $0.61 | Shop at ECS Tuning | ||||
| 06 | Tailpipe tip, chrome | 42 MM | 2 | 09/1981 | 82119413972 | $14.90 | Shop at ECS Tuning | |||
| 06 | Tailpipe tip, chrome | 42 MM | 2 | 09/1981 | 82119413972 | $14.90 | Shop at ECS Tuning | |||
| 07 | Holder | 2 | 09/1981 | 18211246568 | $4.92 | ENDED | Shop at ECS Tuning | |||
| 07 | Holder | 2 | 09/1981 | 18211246568 | $4.92 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 09/1981 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 09/1981 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 09 | Rubber Ring | 2 | 09/1981 | 08/2000 | 18211105638 | $4.23 | ENDED | Shop at ECS Tuning | ||
| 09 | Rubber Ring | 2 | 09/1981 | 08/2000 | 18211105638 | $4.23 | ENDED | Shop at ECS Tuning | ||
| 09 | Rubber Ring | 2 | 09/1981 | 18211105635 | $4.83 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 2 | 09/1981 | 18211105635 | $4.83 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 09/1981 | 18211175585 | $14.63 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 09/1981 | 18211175585 | $14.63 | Shop at ECS Tuning | ||||
| 11 | Rubber Ring | 1 | 09/1981 | 18211712838 | $5.72 | Shop at ECS Tuning | ||||
| 11 | Rubber Ring | 1 | 09/1981 | 18211712838 | $5.72 | Shop at ECS Tuning | ||||
| 12 | Washer | A8,4 | 1 | 09/1981 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 12 | Washer | A8,4 | 1 | 09/1981 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 09/1981 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 09/1981 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| 14 | Heat resistant plate | 1 | 09/1981 | 18211246921 | $23.28 | ENDED | Shop at ECS Tuning | |||
| 14 | Heat resistant plate | 1 | 09/1981 | 18211246921 | $23.28 | ENDED | Shop at ECS Tuning | |||
| 15 | Center muffler | 1 | 09/1981 | 18129068556 | ENDED | Shop at ECS Tuning | ||||
| 15 | Center muffler | 1 | 09/1981 | 18129068556 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rear muffler | 1 | 09/1981 | 18129068555 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rear muffler | 1 | 09/1981 | 18129068555 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Exhaust system?
- This technical diagram illustrates the Exhaust system within the Exhaust system group for the 6 Series E24 633CSi produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust system (Part #18121176205).
- Which models use the hardware listed in this Exhaust system?
- The hardware and components featured in the Exhaust system are specific to the 6 Series E24 633CSi produced during 1982. These technical specifications ensure that parts like the Exhaust system (18121176205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system assembly?
- Each item in the Exhaust system corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Exhaust system by locating its position on the schematic, which then links to the official BMW part number 18121176205 for the Exhaust system section.
