Exhaust pipe front for BMW 3 Series E30 318i (1987)

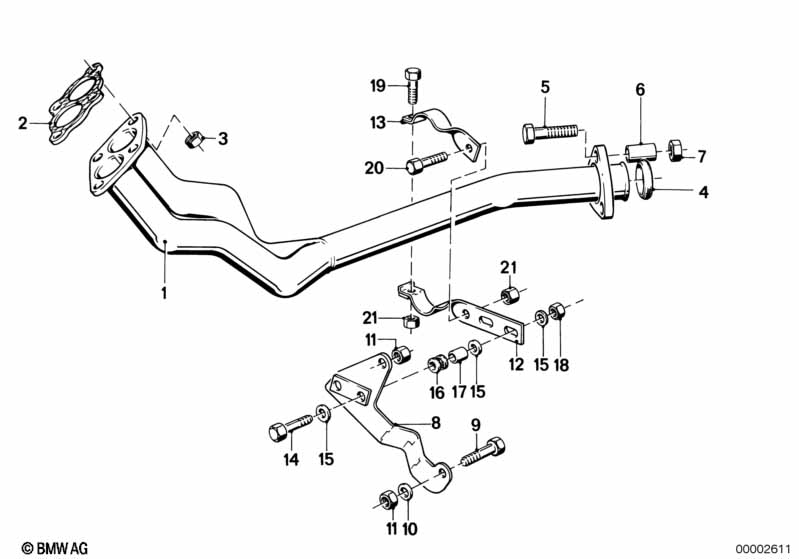

This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.

Exhaust pipe front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust pipe 1 18111176645 $169.28 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
01 Exhaust pipe 1 18111176645 $169.28 Shop at ECS Tuning
02 Gasket Asbestos Free 1 18111728364 $16.50 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
02 Gasket Asbestos Free 1 18111728364 $16.50 Shop at ECS Tuning
03 Hex nut M10 4 18301737774 $1.65 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
03 Hex nut M10 4 18301737774 $1.65 Shop at ECS Tuning
04 Gasket ring 46MM 1 18111176651 $7.54 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
04 Gasket ring 46MM 1 18111176651 $7.54 Shop at ECS Tuning
05 Hexagon bolt M8X65 3 07119903018 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
05 Hexagon bolt M8X65 3 07119903018 Shop at ECS Tuning
06 Bush 3 32111114805 $3.82 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
06 Bush 3 32111114805 $3.82 Shop at ECS Tuning
07 Hex nut wiht flange M8 3 18307620549 Shop at ECS Tuning
08 Bracket 1 09/1984 18211707967 Shop at ECS Tuning
only in conjunction with
-- Exhaust support 1 09/1984 18211245957 $6.46 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
08 Bracket 1 09/1984 18211707967 Shop at ECS Tuning
only in conjunction with
-- Exhaust support 1 09/1984 18211245957 $6.46 Shop at ECS Tuning
09 Hex bolt M8X20-ZNNIV SI 2 07119903039 Shop at ECS Tuning
09 Hex bolt M8X40-ZNNIV SI 1 07119905549 $1.05 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
09 Hex bolt M8X20-ZNNIV SI 2 07119903039 Shop at ECS Tuning
09 Hex bolt M8X40-ZNNIV SI 1 07119905549 $1.05 Shop at ECS Tuning
10 Washer A8,4 2 33311108205 $0.16 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
10 Washer A8,4 2 33311108205 $0.16 Shop at ECS Tuning
11 Hex nut M8-8-ZNNIV SI 2 07119905515 $0.16 Shop at ECS Tuning
12 Exhaust support 1 09/1984 18211245957 $6.46 Shop at ECS Tuning
only in conjunction with
-- Bracket 1 09/1984 18211707967 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
12 Exhaust support 1 09/1984 18211245957 $6.46 Shop at ECS Tuning
only in conjunction with
-- Bracket 1 09/1984 18211707967 Shop at ECS Tuning
13 Bow 1 18211245956 $2.59 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
13 Bow 1 18211245956 $2.59 Shop at ECS Tuning
14 Hex bolt M6X30-8.8-ZNS3 2 07119904116 $0.38 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
14 Hex bolt M6X30-8.8-ZNS3 2 07119904116 $0.38 Shop at ECS Tuning
15 Washer 6 18214690192 $0.20 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
15 Washer 6 18214690192 $0.20 Shop at ECS Tuning
16 Joint sleeve 2 18211712091 $2.86 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
16 Joint sleeve 2 18211712091 $2.86 Shop at ECS Tuning
17 Spacer sleeve 2 18214690169 $6.18 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
17 Spacer sleeve 2 18214690169 $6.18 Shop at ECS Tuning
18 Self-locking hex nut M6-10 ZN 2 01/1989 07129922705 $0.27 ENDED Shop at ECS Tuning
18 Self-locking hex nut M6 ZNNIV SI 2 07147575163 $0.25 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
18 Self-locking hex nut M6 ZNNIV SI 2 07147575163 $0.25 Shop at ECS Tuning
19 Hex bolt M8X25-8.8-ZNNIV 1 07119906181 $0.55 Shop at ECS Tuning
19 Hex bolt M8X25 1 07119913653 $0.47 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
19 Hex bolt M8X25-8.8-ZNNIV 1 07119906181 $0.55 Shop at ECS Tuning
19 Hex bolt M8X25 1 07119913653 $0.47 Shop at ECS Tuning
20 Hex bolt M8X16-10.9-PHR 1 07119913612 $0.62 Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
20 Hex bolt M8X16-10.9-PHR 1 07119913612 $0.62 Shop at ECS Tuning
21 Self-locking hex nut M8-8-ZNNIV SI 2 07129905767 $0.27 ENDED Shop at ECS Tuning
For vehicles with
without catalytic converter
S199A=Yes
21 Self-locking hex nut M8-8-ZNNIV SI 2 07129905767 $0.27 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

EXHAUST SYSTEM WITH CATALYST EXHAUST SYSTEM WITH CATALYST
EXHAUST ASSY WITHOUT CATALYST EXHAUST ASSY WITHOUT CATALYST
EXHAUST PIPE, CATALYTIC CONVERTER EXHAUST PIPE, CATALYTIC CONVERTER
EXHAUST SYSTEM, REAR EXHAUST SYSTEM, REAR

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E30 318i Exhaust pipe front?
This technical diagram illustrates the Exhaust pipe front within the Exhaust system group for the 3 Series E30 318i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipe (Part #18111176645).
Which models use the hardware listed in this Exhaust pipe front?
The hardware and components featured in the Exhaust pipe front are specific to the 3 Series E30 318i produced during 1987. These technical specifications ensure that parts like the Exhaust pipe (18111176645) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Exhaust pipe front assembly?
Each item in the Exhaust pipe front corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Exhaust pipe by locating its position on the schematic, which then links to the official BMW part number 18111176645 for the Exhaust system section.
