Exhaust assy without catalyst for BMW 3 Series E30 318i (1987)

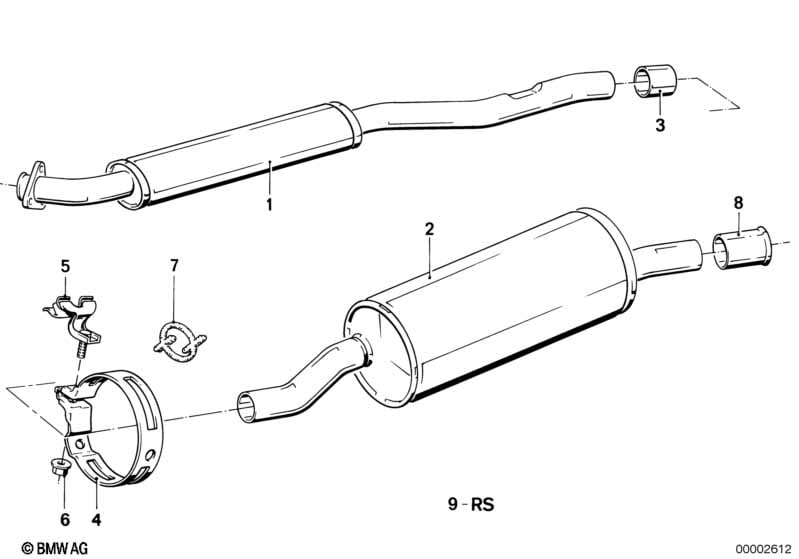

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18121176990 | $347.48 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18121178387 | ENDED | Shop at ECS Tuning | |||||
| 03 | Clamping bush | D=45,5 X 70MM | 1 | 18307536423 | $34.61 | Shop at ECS Tuning | ||||
| 04 | Clamp | 1 | 18211176709 | $10.43 | Shop at ECS Tuning | |||||
| 05 | Holder | 1 | 18211707807 | $5.32 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Rubber Ring | 1 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 09 | Set mounting parts | 1 | 18211177785 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
