Exhaust pipe for BMW 5 Series E28 524td (1987)

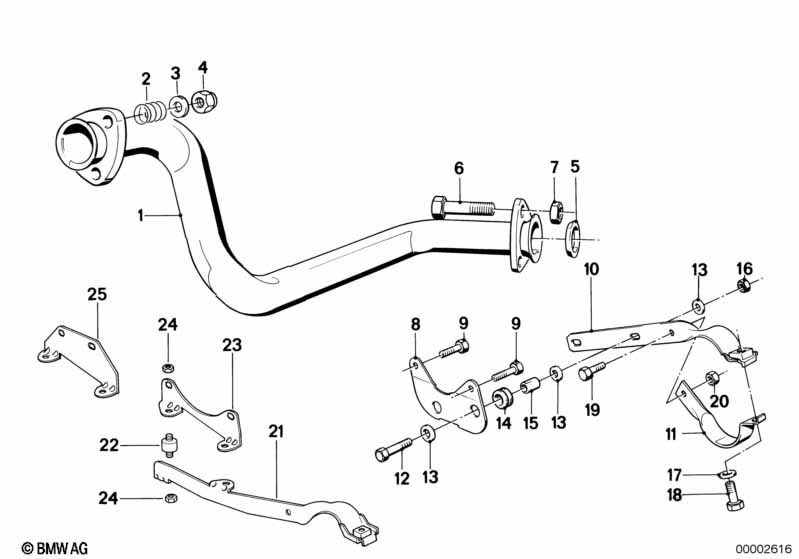

This Exhaust pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | 1 | 18111177015 | $83.48 | Shop at ECS Tuning | |||||
| 01 | Exhaust pipe | 1 | 01/1987 | 18111709283 | $174.10 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 58MM | 1 | 18121109190 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X43-8.8-ZNS3 | 3 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M8 | 3 | 18307620549 | Shop at ECS Tuning | |||||
| 08 | Bracket | 1 | 18211177960 | $2.27 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Exhaust support | 1 | 18211177965 | $6.27 | Shop at ECS Tuning | |||||
| 11 | Bow | 1 | 18211175696 | $1.50 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | 2 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 14 | Joint sleeve | 2 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 15 | Spacer sleeve | 2 | 18214690169 | $6.18 | Shop at ECS Tuning | |||||
| 16 | Self-locking hex nut | M6-10 ZN | 2 | 12/1987 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 16 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 20 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 524td Exhaust pipe?
- This technical diagram illustrates the Exhaust pipe within the Exhaust system group for the 5 Series E28 524td produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipe (Part #18111177015).
- Which models use the hardware listed in this Exhaust pipe?
- The hardware and components featured in the Exhaust pipe are specific to the 5 Series E28 524td produced during 1987. These technical specifications ensure that parts like the Exhaust pipe (18111177015) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust pipe assembly?
- Each item in the Exhaust pipe corresponds to the numbered list below the illustration. For the 5 Series E28 524td, you can identify the Exhaust pipe by locating its position on the schematic, which then links to the official BMW part number 18111177015 for the Exhaust system section.
