Exhaust assy without catalyst for BMW 5 Series E28 524td (1984)

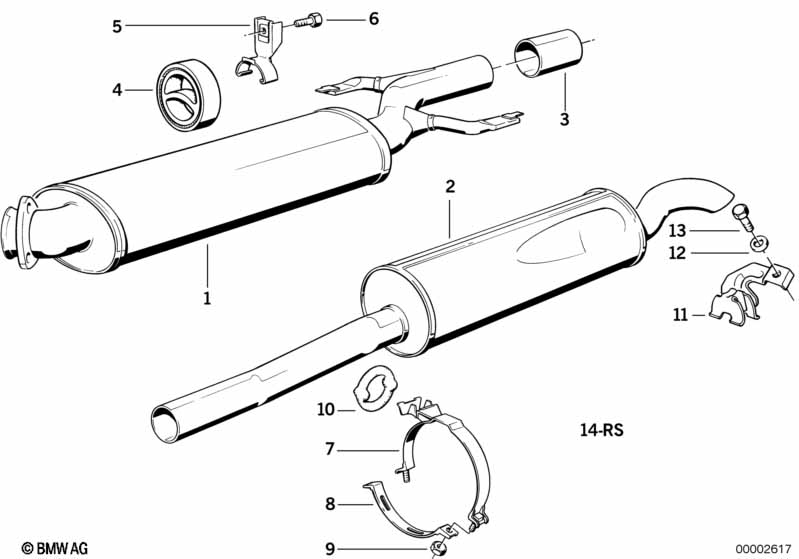

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18121177112 | $253.80 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18121177119 | $344.45 | ENDED | Shop at ECS Tuning | ||||
| 03 | Welding sleeve | D=61MM | 1 | 18121178184 | $6.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 04 | Rubber Ring | 2 | 18211105635 | $4.83 | Shop at ECS Tuning | |||||
| 05 | Holder | 2 | 18211175445 | $5.79 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16U2-8.8ZNS3 | 2 | 07119904279 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Rubber Ring | 1 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 18211175585 | $14.63 | Shop at ECS Tuning | |||||
| 12 | Washer | A8,4 | 1 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Set mounting parts | 1 | 18211177343 | $32.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
