Exhaust manifold for BMW 3 Series E30 M3 (1990)

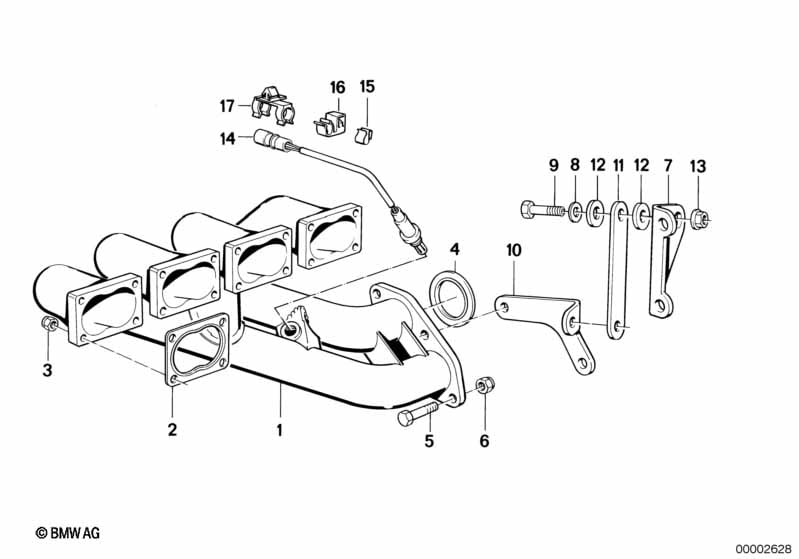

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 42X2 + KAT | 1 | 11621308805 | $1209.32 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M SPORT E3 | ||||||||||
| 01 | Exhaust manifold | 1 | 01/1990 | 11621315872 | $3832.73 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust manifold | ROHR 50X2 | 1 | 11621309348 | $1209.32 | ENDED | Shop at ECS Tuning | |||
| 01 | Exhaust manifold | ROHR 50X2 | 1 | 11621311877 | $3083.74 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and without catalytic converter |
L804A=Yes S199A=No |
|||||||||
| 01 | Exhaust manifold | 42X2 + KAT | 1 | 11621308805 | $1209.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connector | CO/HC | 4 | 11621315027 | ENDED | Shop at ECS Tuning | ||||
| -- | Cap | 4 | 11621315028 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 4 | 11621312992 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M6-SW 9 MM | X | 11621304755 | $0.75 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 2 | 11761308686 | $18.37 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO M SPORT E3 | ||||||||||
| 04 | Gasket ring asbesto-free | D=55MM | 2 | 01/1990 | 18301315855 | $16.20 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M10X45 | 3 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M10X50 | 1 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M SPORT E3 | ||||||||||
| 05 | Hex bolt | M10X60-10.9ZNS3 | 4 | 01/1990 | 07119905162 | $1.78 | Shop at ECS Tuning | |||
| 06 | Hex nut | M10 | 3 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO M SPORT E3 | ||||||||||
| 06 | Washer | 10,5 | 4 | 01/1990 | 07119931332 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 18201309041 | $6.30 | Shop at ECS Tuning | |||||
| 08 | Washer | 10-200 ZNS3 | 4 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 09 | Fit bolt | M8 K11X35 | 2 | 07119905800 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 10 | Bracket exhaust pipe | 1 | 18301315859 | $27.70 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rod | 1 | 18201309042 | $15.88 | Shop at ECS Tuning | |||||
| 12 | Intermediate piece | 4 | 18201309043 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 14 | Oxygen sensor | 1 | 11781310838 | $263.06 | Shop at ECS Tuning | |||||
| 15 | Fixing clamp | 2 | 07149139223 | $0.18 | Shop at ECS Tuning | |||||
| 16 | Cable holder | D=7MM | 2 | 61131379359 | $0.70 | Shop at ECS Tuning | ||||

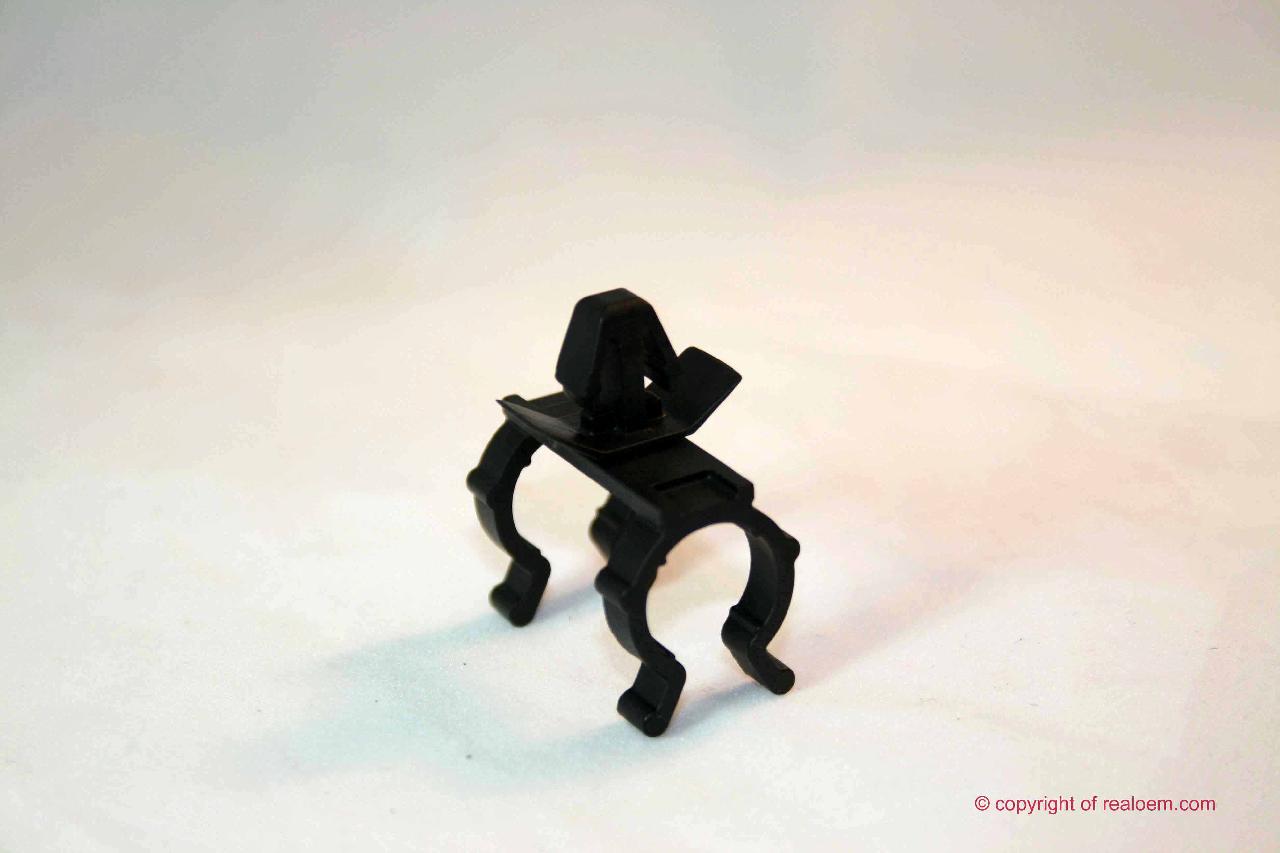

| 17 | Cable holder | D=13MM | 1 | 61136784633 | $0.63 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
