Exhaust assy without catalyst for BMW 3 Series E30 320i (1990)

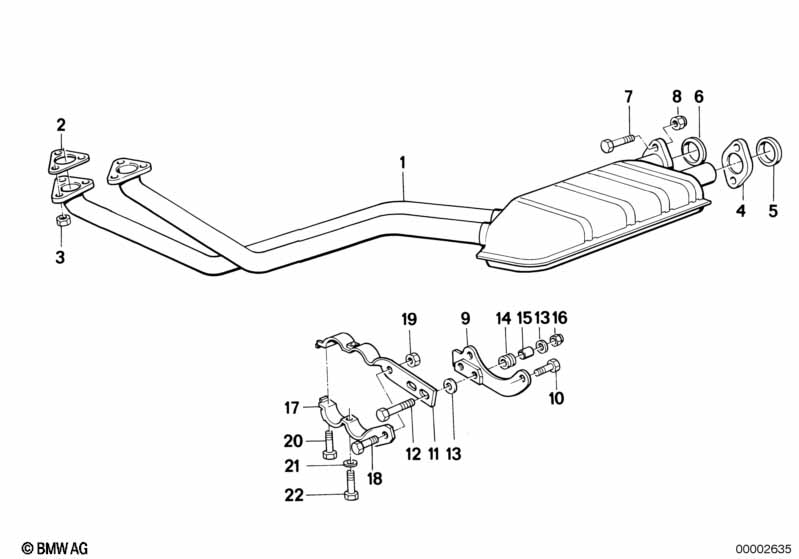

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
|||||||||
| 01 | Exhaust pipe catalyst preparation | 1 | 18101712260 | $440.58 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 11761711717 | $18.37 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M10 | X | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Flange | 1 | 18111712064 | $12.64 | Shop at ECS Tuning | |||||
| 05 | Gasket ring asbesto-free | 45MM | 1 | 18111723533 | Shop at ECS Tuning | |||||
| 06 | Conical ring | 42MM | 1 | 18111245489 | $5.47 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 08 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 09 | Bracket | 1 | 18211178296 | $3.53 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Exhaust support | 1 | 18211178290 | $11.66 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | X | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 14 | Joint sleeve | 4 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 16 | Self-locking hex nut | M6-10 ZN | 2 | 05/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 16 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Clamp | D=45MM | 1 | 18211178293 | $7.47 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 21 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M8X43-8.8-ZNS3 | 1 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
