Exhaust system with catalyst for BMW 7 Series E32 750i (1989)

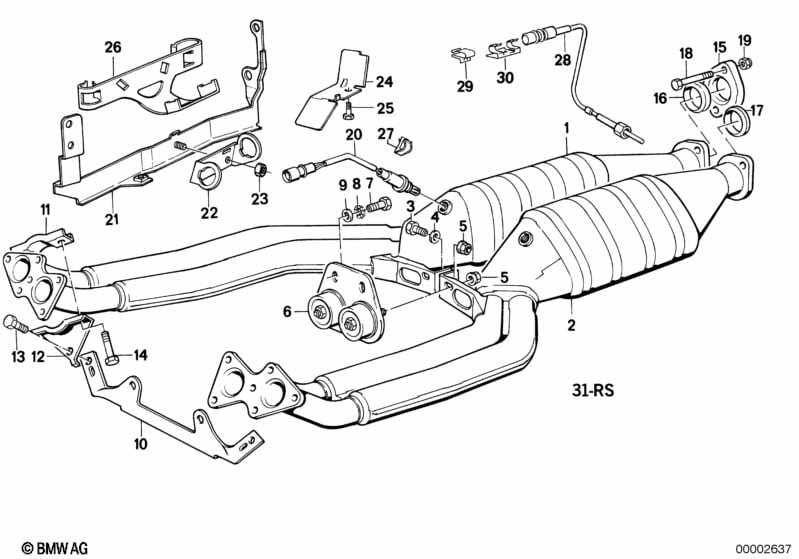

This Exhaust system with catalyst technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | RP-exhaust pipe catalytic conv. cyl. 1-6 | ZYL.1-6 | 1 | 11761716772 | $2073.49 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | RP exhaust pipe cat.conv.cylinder 1-6 | ZYL.1-6 | 1 | 18301728975 | $1478.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 02 | RP-exhaust pipe catalytic conv. cyl.7-12 | ZYL.7-12 | 1 | 11761716771 | $2073.49 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | RP-exhaust pipe catalytic conv. cyl.7-12 | ZYL.7-12 | 1 | 18301728976 | $1478.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 03 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 5 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Holder | 1 | 11761716661 | $143.45 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X20 | 2 | 07119913646 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 08 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 11761716711 | $27.54 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 11761716708 | $8.12 | Shop at ECS Tuning | |||||
| 12 | Holder | 2 | 11761716710 | $6.16 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M8X16-Z3-2 | 2 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X50 | 4 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 15 | Flange | 1 | 18111712393 | $18.86 | Shop at ECS Tuning | |||||
| 16 | Gasket ring | 72MM | 1 | 18111723530 | Shop at ECS Tuning | |||||
| 17 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 19 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 20 | Oxygen sensor | L=520MM | 2 | 11781733628 | $215.65 | SI 110896(164) | Shop at ECS Tuning | |||
| 21 | Holder | 1 | 12531724058 | $16.03 | ENDED | Shop at ECS Tuning | ||||
| 22 | Holder | 1 | 12531719565 | $3.83 | Shop at ECS Tuning | |||||
| 23 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Stone-chip guard | 1 | 12531719593 | $2.90 | Shop at ECS Tuning | |||||
| 25 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 26 | Lambda-probe bracket | MOTRONIC 1.2 | 1 | 07/1990 | 11781720225 | $11.59 | ENDED | Shop at ECS Tuning | ||
| 27 | Cable clamp | 2 | 11781720403 | $0.84 | Shop at ECS Tuning | |||||
| 28 | Temperature sensor | 2 | 11781722357 | ENDED | Shop at ECS Tuning | |||||
| 29 | Cable clamp | D=4,5MM | 2 | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 30 | Cable clamp | D=10-12MM | 2 | 63171372006 | $2.42 | Shop at ECS Tuning | ||||
