Exhaust pipe front silencer for BMW 7 Series E32 750i (1989)

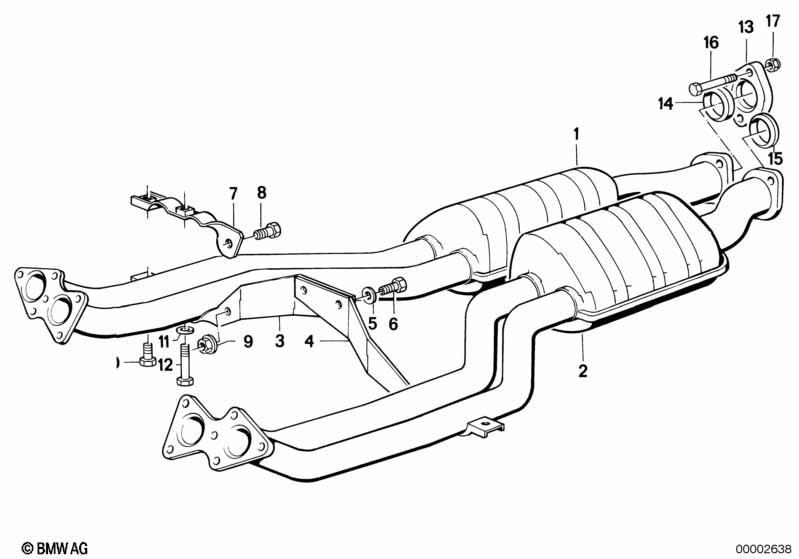

This Exhaust pipe front silencer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
|||||||||
| 01 | Exhaust pipe-muffler | ZYL.1-6 | 1 | 18101712375 | $401.76 | Shop at ECS Tuning | ||||
| 02 | Exhaust pipe-muffler | ZYL.7-12 | 1 | 18101712377 | $401.76 | ENDED | Shop at ECS Tuning | |||
| 03 | Holder | ZYL.1-6 | 1 | 18211709296 | Shop at ECS Tuning | |||||
| 04 | Holder | ZYL.7-12 | 1 | 18211709297 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 18211709298 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Collar nut | M8-8-SC-ZNNIV | 8 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X43-8.8-ZNS3 | 2 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 13 | Flange | 1 | 18111712393 | $18.86 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | 72MM | 1 | 18111723530 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 17 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
