Exhaust system, rear for BMW 7 Series E32 750i (1989)

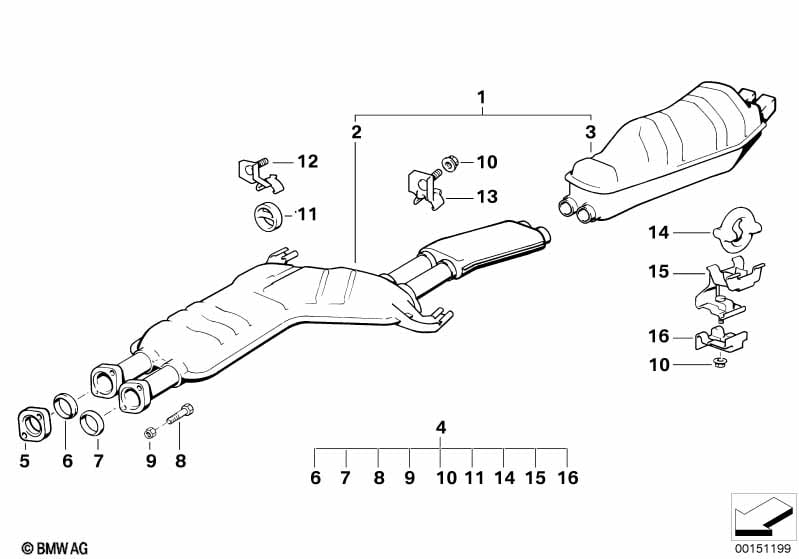

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust system | 1 | 18101712389 | $993.24 | Shop at ECS Tuning | |||||
| 02 | Center muffler | 1 | 18129068551 | $450.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear muffler | 1 | 18129068552 | $723.29 | Shop at ECS Tuning | |||||
| 04 | Set of add-on parts, silencer | 1 | 18210141663 | $69.55 | ENDED | Shop at ECS Tuning | ||||
| 05 | Flange | 1 | 18111712393 | $18.86 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 72MM | 1 | 18111723530 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 10 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Rubber Ring | HS 65 | 2 | 18211177708 | $4.53 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 18211728600 | $25.95 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 18211175445 | $5.79 | Shop at ECS Tuning | |||||
| 14 | Rubber Ring | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 15 | Holder | 2 | 18211719415 | $13.30 | Shop at ECS Tuning | |||||
| 16 | Bow | 2 | 18211178343 | $1.82 | Shop at ECS Tuning | |||||
| 16 | Bow | 2 | 18211723410 | $1.68 | Shop at ECS Tuning | |||||
