Exhaust assy without catalyst for BMW 3 Series E30 318i (1993)

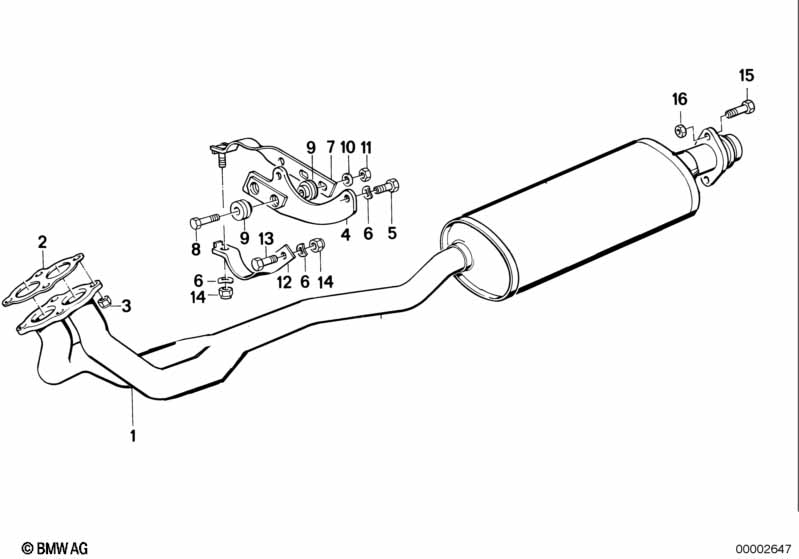

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYZER PREPARATION CONVENTIONAL EXHAUST TECHNIQUE |
|||||||||
| 01 | Front muffler | 1 | 18101712790 | $347.48 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 02 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Bracket | 4HP-22 | 1 | 18211178300 | $5.85 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B8 | 2 | 02/1994 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Exhaust support | 1 | 18211712637 | $6.46 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Joint sleeve | 4 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6-10 ZN | 2 | 02/1994 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Support shackle | 1 | 18211712639 | $2.93 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M8-8-ZNNIV SI | 4 | 07129905767 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 15 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 16 | Hex nut wiht flange | M8 | 2 | 02/1994 | 11621711954 | $0.60 | ENDED | Shop at ECS Tuning | ||
