Exhaust system, rear for BMW 5 Series E34 525i (1996)

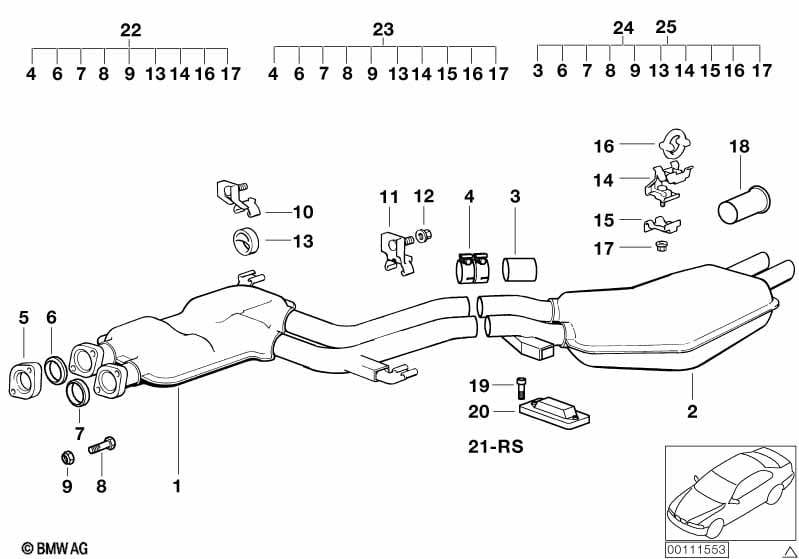

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 18121427802 | $381.36 | Shop at ECS Tuning | |||||
| 02 | Rear muffler | 1 | 18101705761 | $372.46 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamping bush | D=45,5 X 70MM | 2 | 18307536423 | $34.61 | Shop at ECS Tuning | ||||
| FOR FITTING SEE REPAIR MANUAL | ||||||||||
| 04 | Clamping bush | D=45,5 X 70MM | 2 | 18307536423 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Flange | 1 | 18111712070 | $15.61 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 50MM | 1 | 18111723532 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | 47MM | 1 | 18111175311 | $8.37 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 18211728600 | $25.95 | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 18211175445 | $5.79 | Shop at ECS Tuning | |||||
| 12 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Rubber Ring | 2 | 18211728332 | $4.07 | Shop at ECS Tuning | |||||
| 14 | Rear silencer bracket | 2 | 18211178340 | $8.22 | Shop at ECS Tuning | |||||

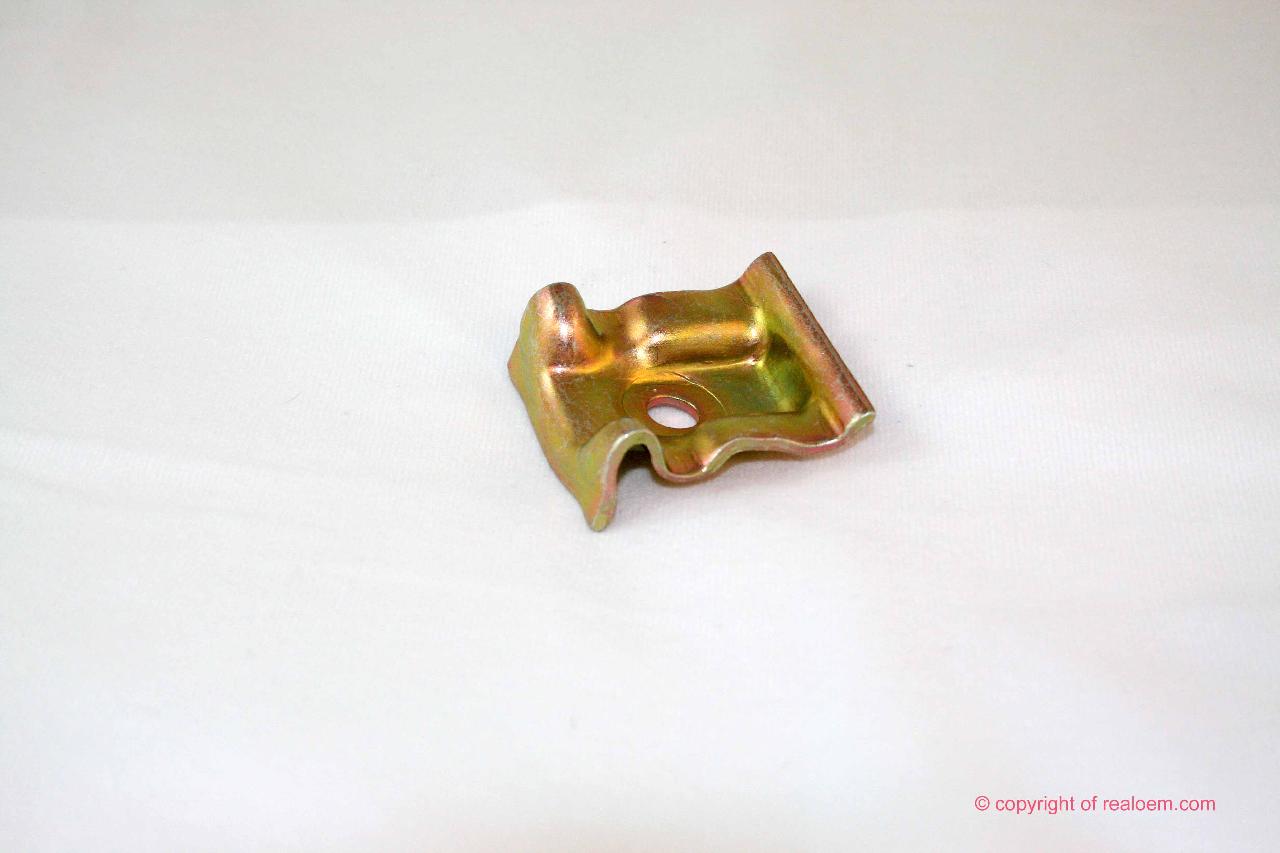

| 15 | Bow | 2 | 18211178343 | $1.82 | Shop at ECS Tuning | |||||
| 15 | Bow | 2 | 18211723410 | $1.68 | Shop at ECS Tuning | |||||
| 16 | Rubber Ring | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 17 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 18 | Tailpipe tip, chrome | 48 MM | 2 | 82119401164 | $24.00 | Shop at ECS Tuning | ||||
| 18 | Tailpipe tip, black | 48 MM | 2 | 82119401165 | $24.00 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 20 | Vibration absorber | SERVICE | 1 | 18201744124 | $61.86 | Shop at ECS Tuning | ||||
| 25 | Set of add-on parts, silencer | 1 | 18210143449 | $59.10 | Shop at ECS Tuning | |||||
