Exhaust system, rear for BMW 3 Series E30 325e (1988)

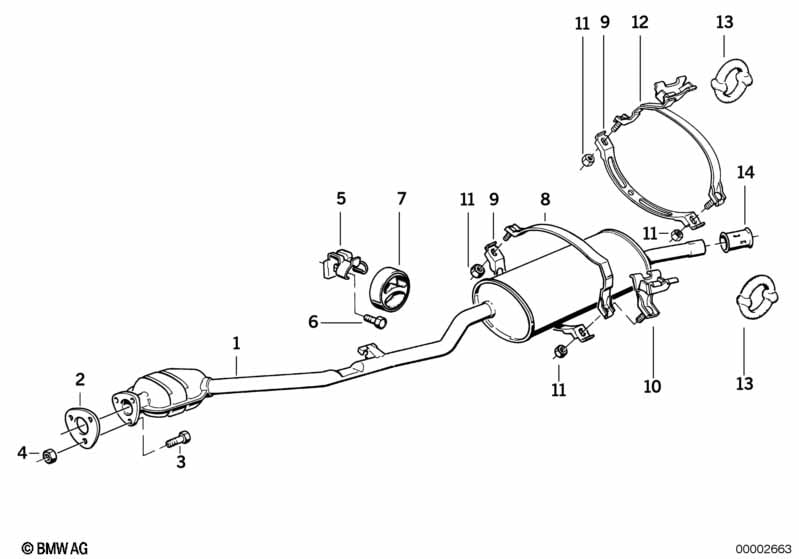

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 09/1987 | 18101705788 | $607.58 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 18301723887 | $10.83 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex nut wiht flange | M8 | 3 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Bracket exhaust pipe | 1 | 09/1987 | 18211712511 | $11.75 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X16U2-8.8ZNS3 | 1 | 07119904279 | Shop at ECS Tuning | |||||
| 07 | Rubber Ring | 1 | 18211105635 | $4.83 | Shop at ECS Tuning | |||||
| 08 | Clamp | 1 | 09/1987 | 18211707923 | $15.70 | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 09/1987 | 18211176713 | $10.43 | Shop at ECS Tuning | ||||
| 10 | Rear silencer bracket | 1 | 09/1985 | 18211176033 | $7.86 | Shop at ECS Tuning | ||||
| 11 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Clamp | 1 | 09/1987 | 18211178126 | $15.70 | Shop at ECS Tuning | ||||
| 13 | Rubber Ring | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 14 | Tailpipe tip, chrome | 51 MM | 1 | 82119413967 | $15.63 | Shop at ECS Tuning |
