Exhaust pipe/muffler for BMW 5 Series E34 525tds (1994)

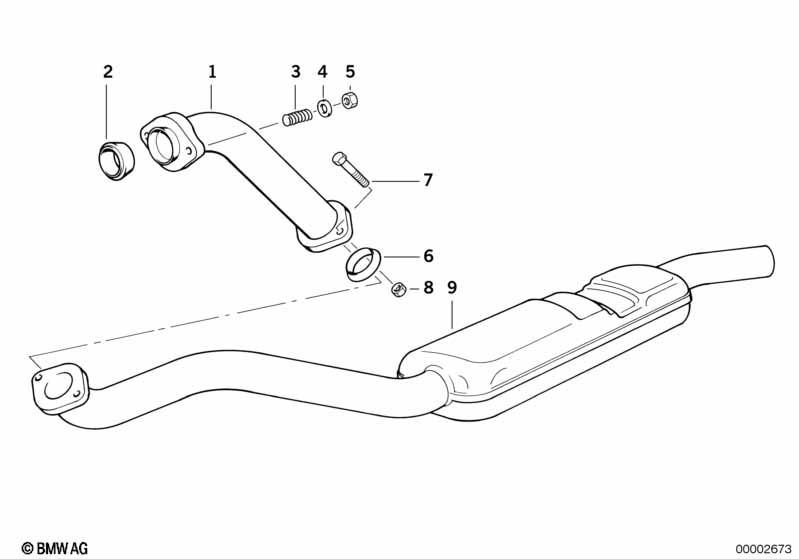

This Exhaust pipe/muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CONVENTIONAL EXHAUST TECHNIQUE For vehicles with without catalytic converter |
S199A=Yes |
||||||||
| 01 | Exhaust pipe | 1 | 18112244592 | Shop at ECS Tuning | ||||||
| 02 | Gasket ring | 60MM | 1 | 18112244092 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Compression spring | 2 | 18112242656 | Shop at ECS Tuning | ||||||
| 04 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 58MM | 2 | 18121109190 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | 60MM | 2 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X45-8.8-ZNS3 | 3 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8 SW12 | 3 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 09 | Front muffler | 1 | 18102243425 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Exhaust pipe/muffler?
- This technical diagram illustrates the Exhaust pipe/muffler within the Exhaust system group for the 5 Series E34 525tds produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust pipe (Part #18112244592).
- Which models use the hardware listed in this Exhaust pipe/muffler?
- The hardware and components featured in the Exhaust pipe/muffler are specific to the 5 Series E34 525tds produced during 1994. These technical specifications ensure that parts like the Exhaust pipe (18112244592) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust pipe/muffler assembly?
- Each item in the Exhaust pipe/muffler corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Exhaust pipe by locating its position on the schematic, which then links to the official BMW part number 18112244592 for the Exhaust system section.
