Diesel catalyst for BMW 5 Series E34 525tds (1996)

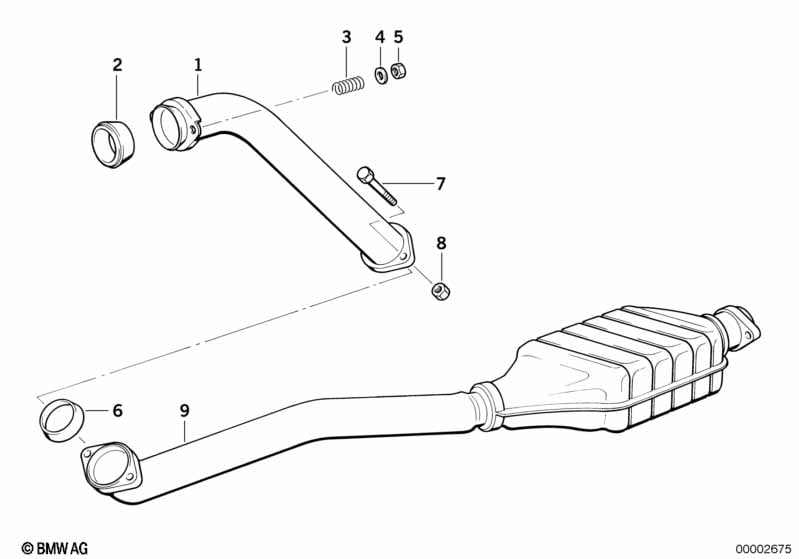

This Diesel catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | 1 | 18112244592 | Shop at ECS Tuning | ||||||
| 02 | Gasket ring | 60MM | 1 | 18112244092 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Compression spring | 2 | 18112242656 | Shop at ECS Tuning | ||||||
| 04 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 58MM | 1 | 18121109190 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X45-8.8-ZNS3 | 3 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8 SW12 | 3 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 09 | RP catalytic converter | 1 | 18312245409 | Shop at ECS Tuning | ||||||
| For vehicles with National version scandinavia and without catalytic converter |
L827A=Yes S199A=No |
|||||||||
| 09 | RP-catalytic converter | 1 | 18312245940 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany and National version Switzerland and without catalytic converter |
L801A=Yes L804A=Yes S199A=No |
|||||||||
| 09 | RP-catalytic converter | 1 | 18312245940 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany and National version Switzerland and without catalytic converter |
L801A=Yes L804A=No S199A=No |
|||||||||
| 09 | RP-catalytic converter | 1 | 18312245940 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Germany and National version Switzerland and without catalytic converter |
L801A=No L804A=Yes S199A=No |
|||||||||
| 09 | RP-catalytic converter | 1 | 18312245940 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
