Rear muffler for BMW 5 Series E34 525tds (1994)

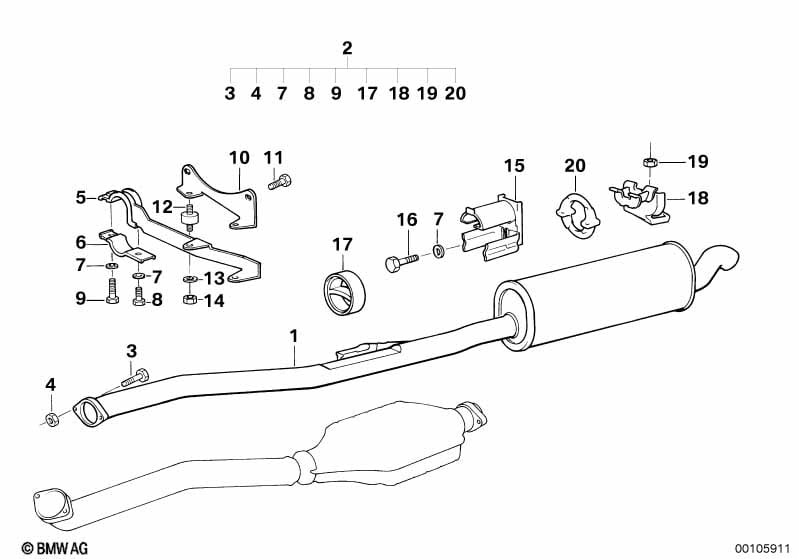

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO CATALYST For vehicles with without catalytic converter |
S199A=No |
||||||||
| 01 | Rear muffler | 1 | 09/1992 | 18102243970 | $393.94 | Shop at ECS Tuning | ||||
| 02 | Set of add-on parts, silencer | 1 | 18210141664 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 04 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Exhaust support | 1 | 18212244040 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 1 | 18311728408 | $7.47 | Shop at ECS Tuning | |||||
| 07 | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Bracket | 1 | 18201728458 | $5.85 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 13 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Bracket exhaust pipe | 1 | 18211712511 | $11.75 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Rubber Ring | 1 | 18211728332 | $4.07 | Shop at ECS Tuning | |||||
| 18 | Rear silencer bracket | 1 | 09/1992 | 18211719351 | Shop at ECS Tuning | |||||
| 19 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 20 | Rubber Ring | 1 | 18212244610 | Shop at ECS Tuning | ||||||
