Catalytic converter/front silencer for BMW 3 Series E36 323i (1998)

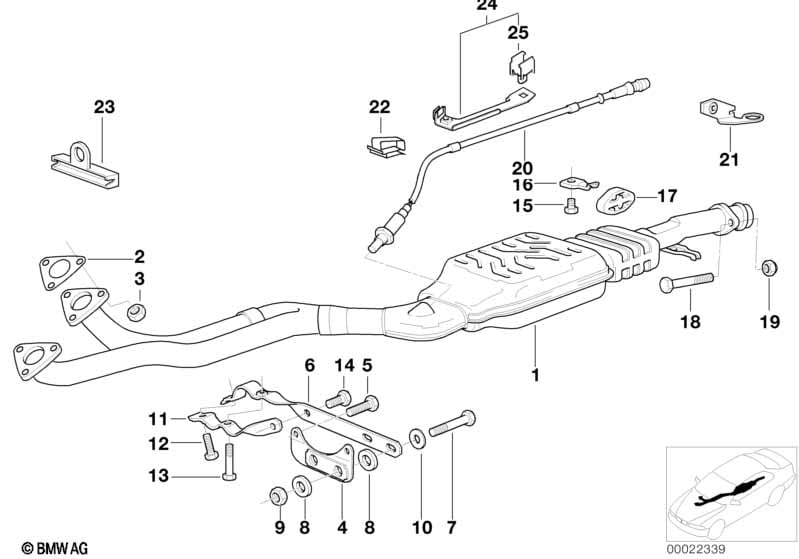

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe catalytic converter | 1 | 18301740837 | $1567.98 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version israel |
L808A=Yes |
|||||||||
| 01 | RP exhaust pipe catalytic converter | 1 | 18301740786 | Shop at ECS Tuning | ||||||
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Bracket | GETRAG | 1 | 18311728547 | $5.59 | SI 230192468 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 06 | Exhaust support | ZF | 1 | 18311728235 | $13.25 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 08 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1 | 18311728237 | $7.47 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M8X18-Z2 | 1 | 07119915132 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Bracket | 2 | 18211723649 | $3.95 | Shop at ECS Tuning | |||||
| 17 | Rubber Ring | 2 | 18301703634 | $4.50 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 19 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 20 | Oxygen sensor | SIEMENS/L=990MM | 2 | 09/1995 | 11781427884 | $215.65 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 20 | Temperature sensor | 1 | 11781734725 | ENDED | Shop at ECS Tuning | |||||
| 20 | Temperature sensor | 1 | 11781734670 | Shop at ECS Tuning | ||||||
| 21 | Lambda-probe bracket | 1 | 12521735478 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 22 | Cable holder | 3 | 11787539016 | $0.72 | Shop at ECS Tuning | |||||
| 23 | Cable holder | 1 | 61138353711 | $2.93 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
