Rear muffler for BMW 3 Series E30 316i (1991)

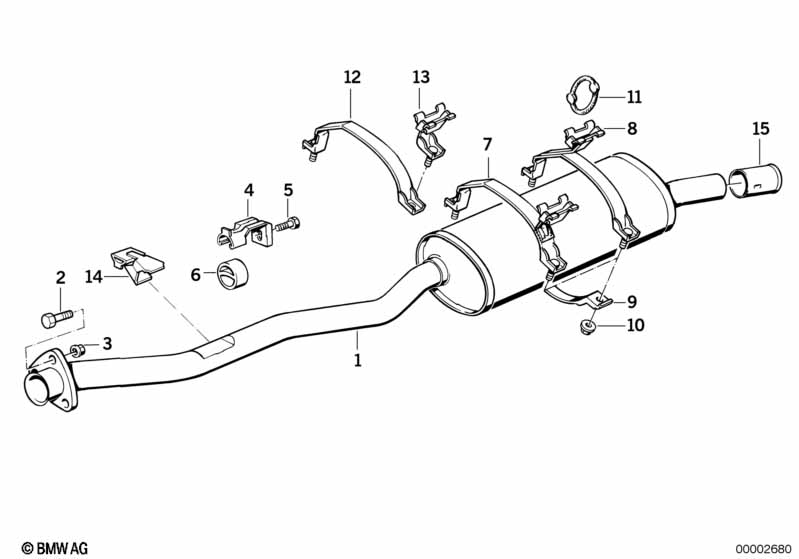

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18101705789 | $313.71 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 03 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 04 | Bracket exhaust, rear | 1 | 18211177828 | $2.88 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M8X16U2-8.8ZNS3 | 1 | 07119904279 | Shop at ECS Tuning | |||||
| 06 | Rubber Ring | 1 | 18211105635 | $4.83 | Shop at ECS Tuning | |||||
| 08 | Clamp upper | 1 | 18211177596 | $15.70 | Shop at ECS Tuning | |||||
| 09 | Clamp lower | 2 | 18211176711 | $10.54 | Shop at ECS Tuning | |||||
| 10 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Rubber Ring | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 12 | Clamp upper | 1 | 18211177595 | $10.43 | Shop at ECS Tuning | |||||
| 13 | Rear silencer bracket | 1 | 18211176033 | $7.86 | Shop at ECS Tuning | |||||
| 14 | Holder | 1 | 18111712670 | $33.48 | Shop at ECS Tuning | |||||
| 15 | Tailpipe tip, chrome | 52 MM | 1 | 82119401091 | Shop at ECS Tuning | |||||
| 15 | Tailpipe tip, black | 52 MM | 1 | 82119401092 | Shop at ECS Tuning |
