Exhaust pipe front for BMW 3 Series E30 324td

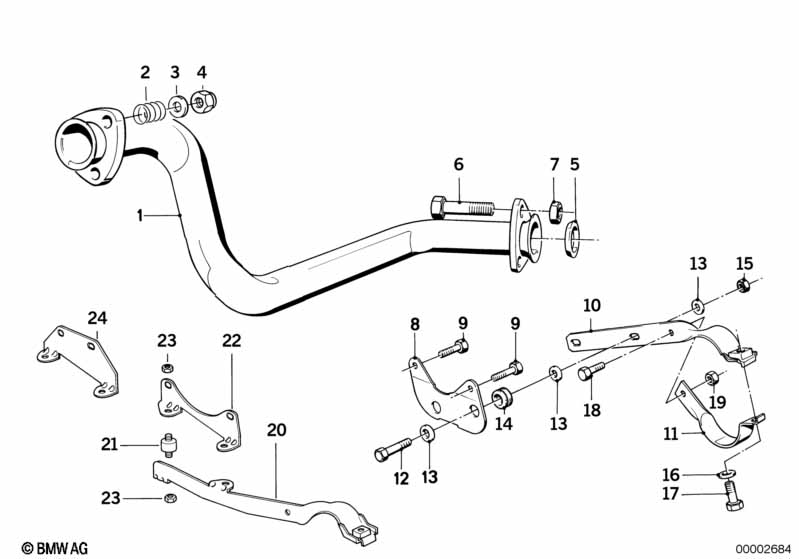

This Exhaust pipe front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust pipe | 1 | 09/1988 | 18112241867 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | 1 | 09/1988 | 18119061794 | ENDED | Shop at ECS Tuning | ||||
| 01 | Exhaust pipe | 1 | 09/1988 | 18112242981 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | 60MM | 1 | 09/1988 | 18112242984 | Shop at ECS Tuning | ||||
| For vehicles with Diesel catalyst |
S169A=Yes |
|||||||||
| 01 | Exhaust pipe | 1 | 18312243541 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut with plate | M8 | 2 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| -- | Washer | A8,4 | 2 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| -- | Gasket ring | 60MM | 1 | 18112242984 | Shop at ECS Tuning | |||||
| -- | Bracket catalyzer | 4HP22 | 1 | 11761716390 | $99.32 | +core | Shop at ECS Tuning | |||
| -- | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 02 | Compression spring | 2 | 18112242656 | Shop at ECS Tuning | ||||||
| 03 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10 | 2 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 58MM | 1 | 18121109190 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | 60MM | 1 | 18111709239 | $11.80 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X43-8.8-ZNS3 | 3 | 07119903076 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M8 | 3 | 18307620549 | Shop at ECS Tuning | |||||
| 08 | Bracket | 4HP-22 | 1 | 18211178300 | $5.85 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 10 | Exhaust support | 1 | 18202242227 | Shop at ECS Tuning | ||||||
| 11 | Bow | 1 | 18202242229 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | 2 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 14 | Joint sleeve | 4 | 18211712091 | $2.86 | Shop at ECS Tuning | |||||
| 15 | Self-locking hex nut | M6-10 ZN | 2 | 04/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 15 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 20 | Exhaust support | SERVICE | 1 | 18212243264 | Shop at ECS Tuning | |||||
| 21 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 23 | Hex nut | M6-SW 9 MM | 4 | 11621304755 | $0.75 | Shop at ECS Tuning | ||||
| 24 | Bracket | 1 | 18212243263 | $5.85 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
