Exhaust assy without catalyst for BMW 3 Series E30 325i (1986)

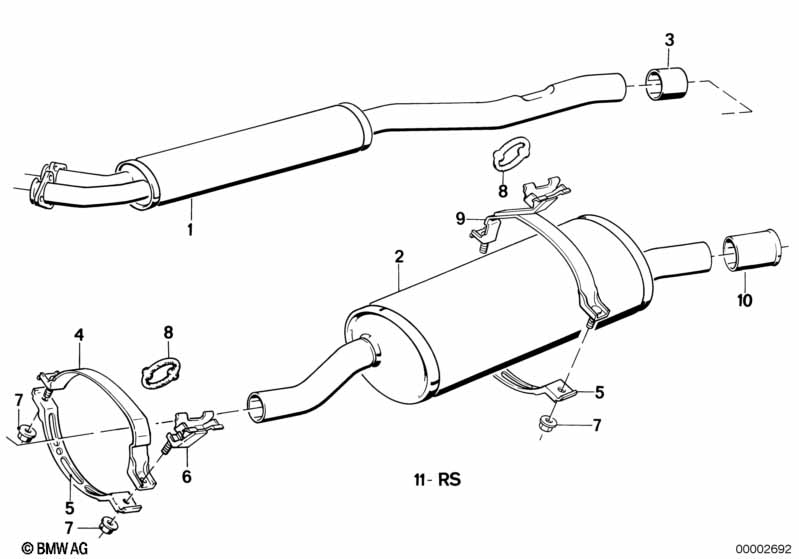

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.

Exhaust assy without catalyst
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
without catalytic converter
S199A=Yes
01 Front muffler 1 09/1987 18121709372 $382.25 Shop at ECS Tuning
02 Rear muffler 1 09/1987 18301707048 $385.23 Shop at ECS Tuning
03 Clamping bush D=45,5 X 70MM 2 18307536423 $34.61 Shop at ECS Tuning
04 Clamp 1 18211707923 $15.70 Shop at ECS Tuning
05 Clamp 2 18211176713 $10.43 Shop at ECS Tuning
06 Rear silencer bracket 1 18211176033 $7.86 Shop at ECS Tuning
07 Collar nut M8-8-SC-ZNNIV 4 07119906089 $0.32 Shop at ECS Tuning
08 Rubber Ring 2 18211712838 $5.72 Shop at ECS Tuning
09 Clamp 1 09/1985 18211178126 $15.70 Shop at ECS Tuning
10 Tailpipe tip, black 58 MM 2 09/1987 82119413986 $32.59 ENDED Shop at ECS Tuning
10 Tailpipe tip, chrome 58 MM 2 09/1987 82119413987 $28.83 Shop at ECS Tuning
11 Set mounting parts 1 18211712320 $36.05 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

EXHAUST SYSTEM WITH CATALYST EXHAUST SYSTEM WITH CATALYST
EXHAUST SYSTEM WITH CATALYST EXHAUST SYSTEM WITH CATALYST
EXHAUST ASSY WITHOUT CATALYST EXHAUST ASSY WITHOUT CATALYST
EXHAUST PIPE FRONT EXHAUST PIPE FRONT
EXHAUST SYSTEM, REAR EXHAUST SYSTEM, REAR
EXHAUST SYSTEM, REAR EXHAUST SYSTEM, REAR

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E30 325i Exhaust assy without catalyst?
This technical diagram illustrates the Exhaust assy without catalyst within the Exhaust system group for the 3 Series E30 325i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Front muffler (Part #18121709372).
Which models use the hardware listed in this Exhaust assy without catalyst?
The hardware and components featured in the Exhaust assy without catalyst are specific to the 3 Series E30 325i produced during 1986. These technical specifications ensure that parts like the Front muffler (18121709372) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Exhaust assy without catalyst assembly?
Each item in the Exhaust assy without catalyst corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Front muffler by locating its position on the schematic, which then links to the official BMW part number 18121709372 for the Exhaust system section.
