Rear muffler for BMW 3 Series E36 M3 (1998)

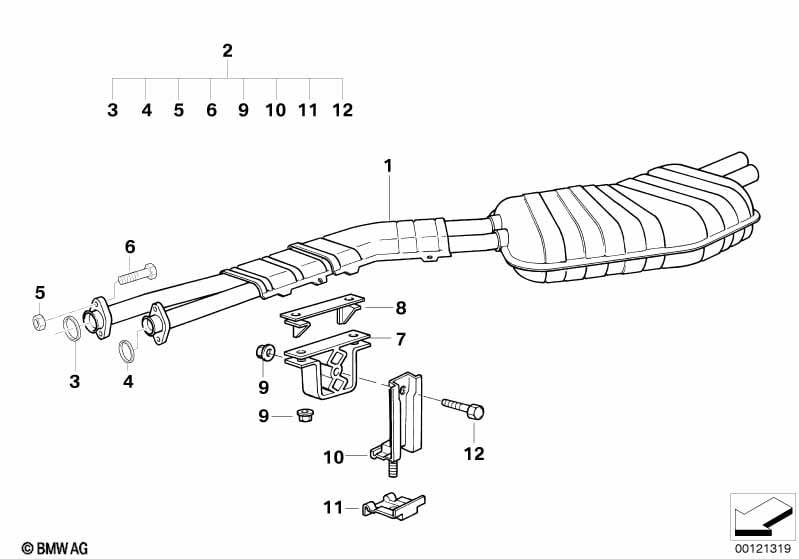

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18101403997 | Shop at ECS Tuning | ||||||
| 02 | Exhaust mounting kit | 1 | 18219059408 | $28.10 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of add-on parts, silencer | 1 | 18210146064 | $41.98 | Shop at ECS Tuning | |||||
| 03 | Gasket ring asbesto-free | 1 | 18101405737 | $11.80 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 1 | 18111723379 | $8.37 | Shop at ECS Tuning | |||||
| 05 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 18201401797 | $54.00 | Shop at ECS Tuning | |||||
| 08 | Support rubber mounting | 2 | 18207839657 | $11.42 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 10 | Holder | 2 | 18201402479 | $17.20 | Shop at ECS Tuning | |||||
| 11 | Bow | 2 | 18211723410 | $1.68 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning |
