Exhaust assy without catalyst for BMW 5 Series E34 518i (1995)

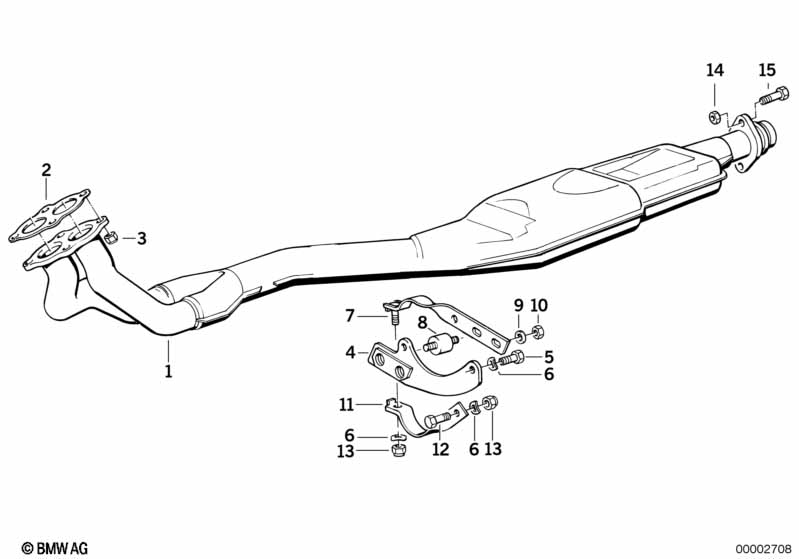

This Exhaust assy without catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with without catalytic converter |
S199A=Yes |
||||||||
| 01 | Front muffler | 1 | 18101703078 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Bracket | 1 | 18201703072 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 06 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Exhaust support | 1 | 18301728585 | $13.25 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 09 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6-10 ZN | 4 | 06/1996 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Support shackle | 1 | 18207546288 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8 SW12 | 2 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
