Rear muffler for BMW 3 Series E36 316i

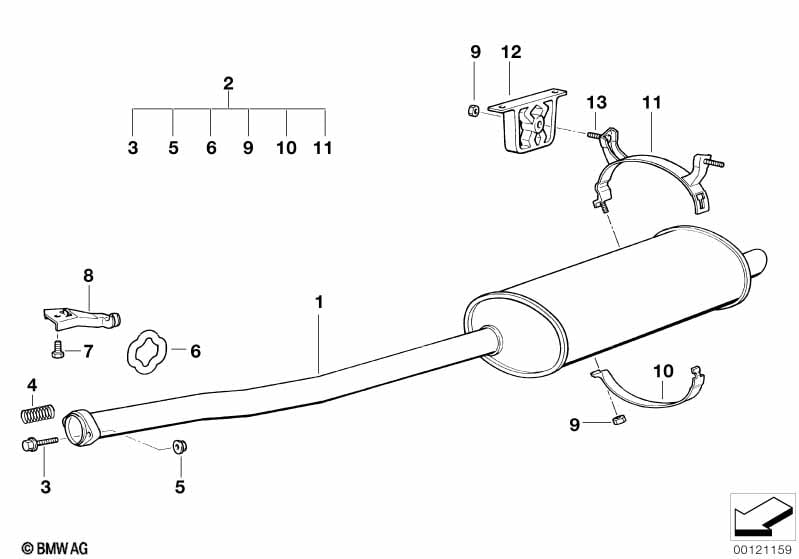

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 03/1993 | 18101737652 | $305.71 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clamp | 1 | 03/1993 | 18211737656 | $15.97 | Shop at ECS Tuning | ||||
| 01 | Rear muffler | 1 | 03/1993 | 18101737652 | $305.71 | Shop at ECS Tuning | ||||
| 02 | Exhaust mounting kit | 1 | 03/1993 | 18219057001 | Shop at ECS Tuning | |||||
| 02 | Exhaust mounting kit | 1 | 03/1993 | 18210026764 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of add-on parts, silencer | 1 | 01/1996 | 18210145763 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 05 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Rubber Ring | 1 | 18211723647 | $4.22 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Bracket exhaust, rear | 1 | 18211723779 | $2.61 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M8-ZNS3 | 8 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 18211723128 | $10.70 | Shop at ECS Tuning | |||||
| 11 | Clamp | 1 | 03/1993 | 18101723709 | Shop at ECS Tuning | |||||
| 11 | Clamp | 1 | 03/1993 | 18211737656 | $15.97 | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 2 | 18211723101 | $32.62 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
