Catalyst/lambda probe for BMW 3 Series E36 318i (1996)

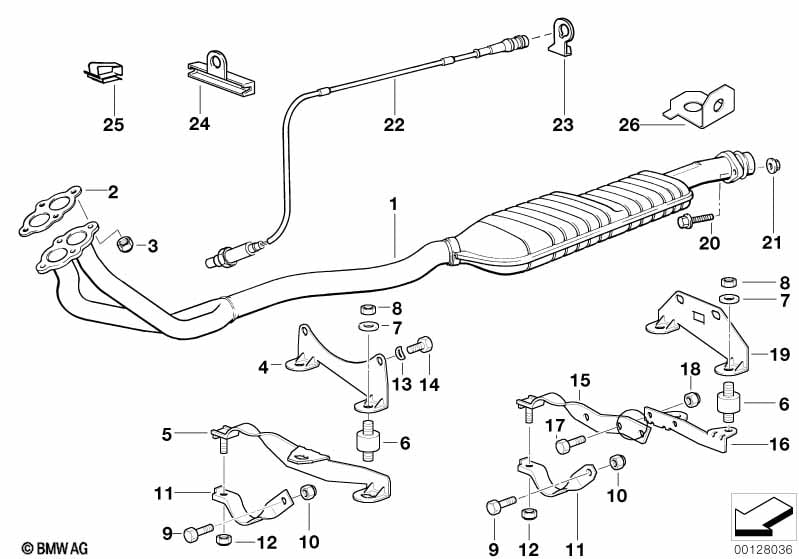

This Catalyst/lambda probe technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe catalytic converter | 1 | 01/1996 | 18301432152 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Vibration absorber | 1 | 01/1996 | 18301432123 | Shop at ECS Tuning | |||||
| -- | Hex bolt | M8X20-ZNNIV SI | 1 | 01/1996 | 07119903039 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Front muffler | 1 | 18101723750 | $418.25 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and Production: South Africa |
L810A=Yes =Yes |
|||||||||
| 01 | RP exhaust pipe catalytic converter | *ZA* | 1 | 18301432795 | Shop at ECS Tuning | |||||
| 01 | RP exhaust pipe catalytic converter | *ZA* | 1 | 01/1996 | 18301432795 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Bracket | 1 | 18212243262 | $5.85 | Shop at ECS Tuning | |||||
| 05 | Exhaust support | 1 | 18301737975 | $13.25 | Shop at ECS Tuning | |||||
| 05 | Exhaust support | 1 | 01/1996 | 18301737975 | $13.25 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 05 | Exhaust support | 1 | 18301728573 | Shop at ECS Tuning | ||||||
| 05 | Exhaust support | 1 | 01/1996 | 18301728573 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 07 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Support shackle | 1 | 18207546288 | Shop at ECS Tuning | ||||||
| 11 | Support shackle | 1 | 01/1996 | 07/2000 | 18301728461 | $5.84 | ENDED | Shop at ECS Tuning | ||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 11 | Support shackle | 1 | 01/1996 | 18211712639 | $2.93 | Shop at ECS Tuning | ||||
| 12 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4 | 2 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 21 | Hex nut wiht flange | M8 | 2 | 18307620549 | Shop at ECS Tuning | |||||
| 22 | Oxygen sensor | L=380MM | 1 | 01/1996 | 11781741317 | $195.30 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 22 | Temperature sensor | 1 | 11781734725 | ENDED | Shop at ECS Tuning | |||||
| 22 | Temperature sensor | 1 | 11781734670 | Shop at ECS Tuning | ||||||
| 23 | Lambda-probe bracket | EG2 | 1 | 01/1996 | 11781247999 | $5.84 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bracket | EG2 | 1 | 01/1996 | 23137545742 | $4.10 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 24 | Cable holder | 1 | 61138353711 | $2.93 | Shop at ECS Tuning | |||||
| 25 | Cable holder | EG2 | 1 | 01/1996 | 11787547202 | $0.78 | Shop at ECS Tuning | |||
| 26 | Bracket | EG2 | 1 | 01/1996 | 23137545742 | $4.10 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
