Rear muffler for BMW 3 Series E36 318i (1999)

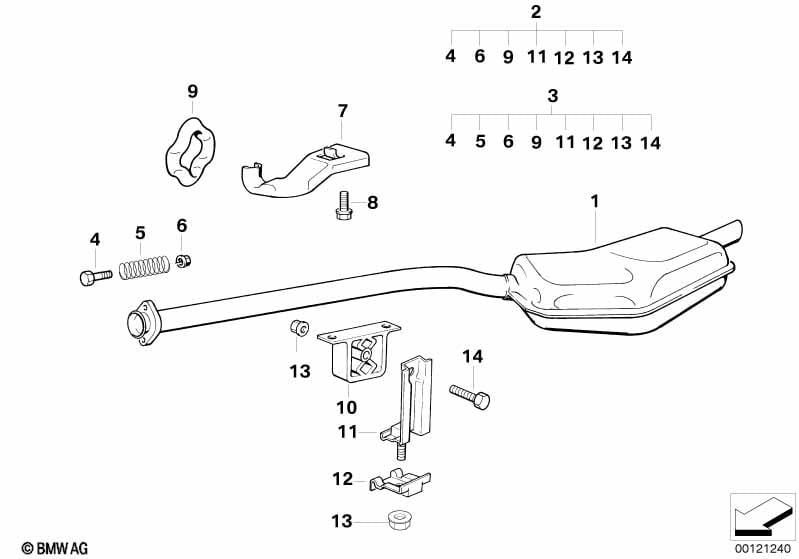

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18101737659 | $305.71 | Shop at ECS Tuning | |||||
| 03 | Set of add-on parts, silencer | 1 | 01/1996 | 18210145892 | $28.83 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X85-U1-8.8 | 2 | 01/1996 | 07119906141 | $1.89 | Shop at ECS Tuning | |||
| 05 | Compression spring | 2 | 01/1996 | 11761716668 | $5.81 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 SW12 | 2 | 01/1996 | 11621744323 | $0.85 | Shop at ECS Tuning | |||
| 07 | Bracket exhaust, rear | 1 | 18211723779 | $2.61 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 1 | 18211723647 | $4.22 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | 2 | 18211723101 | $32.62 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 18211723555 | $5.13 | Shop at ECS Tuning | |||||
| 12 | Bow | 2 | 18211723410 | $1.68 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Rear muffler?
- This technical diagram illustrates the Rear muffler within the Exhaust system group for the 3 Series E36 318i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Rear muffler (Part #18101737659).
- Which models use the hardware listed in this Rear muffler?
- The hardware and components featured in the Rear muffler are specific to the 3 Series E36 318i produced during 1999. These technical specifications ensure that parts like the Rear muffler (18101737659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear muffler assembly?
- Each item in the Rear muffler corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Rear muffler by locating its position on the schematic, which then links to the official BMW part number 18101737659 for the Exhaust system section.
