Rear muffler with exhaust flap for BMW 3 Series E36 328i

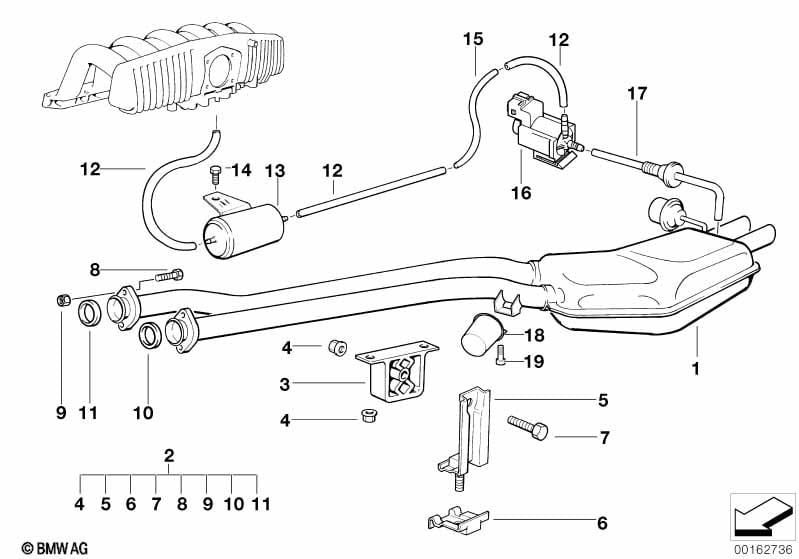

This Rear muffler with exhaust flap technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler with exhaust flap | 1 | 18101740349 | $718.56 | ENDED | Shop at ECS Tuning | ||||
| CONTROL BOX ASSEMBLY REAR SILENCER |
||||||||||
| 02 | Exhaust mounting kit | 1 | 18219059408 | $28.10 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of add-on parts, silencer | 1 | 18210146036 | $29.02 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 2 | 18211723101 | $32.62 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M8-ZNS3 | 8 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Holder | 2 | 18211723555 | $5.13 | Shop at ECS Tuning | |||||
| 06 | Bow | 2 | 18211723410 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8 SW12 | 4 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 10 | Gasket ring asbesto-free | 1 | 18111723721 | Shop at ECS Tuning | ||||||
| 11 | Gasket ring | 48MM | 1 | 18111719446 | $8.37 | Shop at ECS Tuning | ||||
| 12 | Hose with anti-scuffing | L=250MM | 1 | 18101436323 | $7.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 12 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Support | 1 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
| -- | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 13 | Vacuum tank | 1 | 18101740207 | $24.37 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Pipe | D=5MM | X | 18101740949 | $8.92 | Shop at ECS Tuning | ||||
| 16 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 17 | Vacuum pipe | L=220MM/200MM | 1 | 18101740277 | $7.52 | Shop at ECS Tuning | ||||
| 18 | Vibration absorber | 1 | 18201433175 | $115.46 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
