Catalytic converter/front silencer for BMW 5 Series E39 520i (2001)

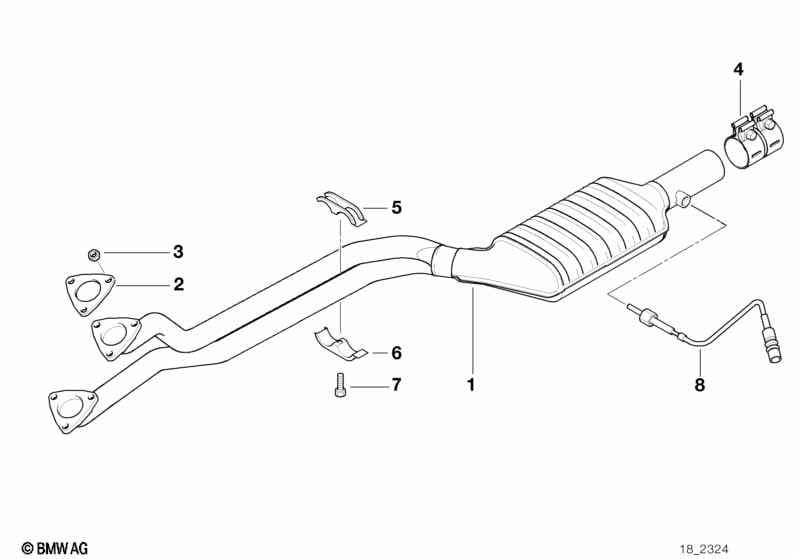

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Clamp upper | D=45MM/50MM | 1 | 18101433249 | $8.75 | Shop at ECS Tuning | ||||
| 06 | Clamp lower | D=45MM/50MM | 1 | 18101433250 | $8.55 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
