Exhaust system, rear for BMW 5 Series E39 523i (1998)

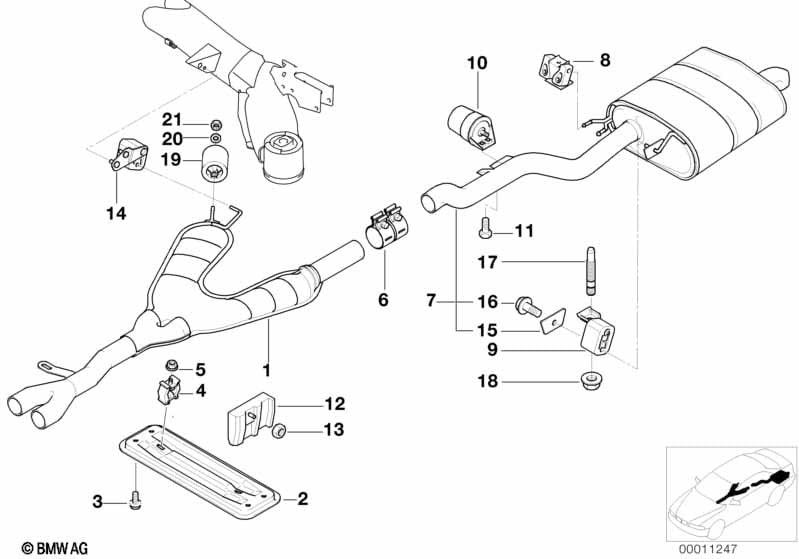

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 09/1998 | 18101437524 | Shop at ECS Tuning | |||||
| 02 | Connecting support | 1 | 09/1998 | 18211745300 | $17.63 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 09/1998 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 1 | 09/1998 | 18211745426 | $21.41 | Shop at ECS Tuning | ||||
| 05 | Collar nut | M8-8-SC-ZNNIV | 2 | 09/1998 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 06 | Clamping bush | D=60 X 70MM | 1 | 09/1998 | 18307560779 | $34.61 | Shop at ECS Tuning | |||
| 07 | Rear muffler | 1 | 09/1998 | 18101436535 | Shop at ECS Tuning | |||||
| 09 | Suspension loop | 1 | 09/1998 | 18201433957 | $15.04 | Shop at ECS Tuning | ||||
| 10 | Vibration absorber | 1 | 09/1998 | 18301436513 | $76.86 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 09/1998 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 14 | Suspension loop | SHORE 60 | 1 | 09/1998 | 18201708962 | $13.73 | SI 001796(165) | Shop at ECS Tuning | ||
| 15 | Bracket | 1 | 09/1998 | 18201435402 | $3.53 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X10-Z1 | 1 | 09/1998 | 07119915041 | $0.25 | Shop at ECS Tuning | |||
| 17 | Stud bolt | M8X50 | 1 | 09/1998 | 18211433080 | $0.98 | Shop at ECS Tuning | |||
| 18 | Collar nut | M8-8-SC-ZNNIV | 1 | 09/1998 | 07119906089 | $0.32 | Shop at ECS Tuning |
