Catalytic converter/front silencer for BMW 5 Series E39 528i (1999)

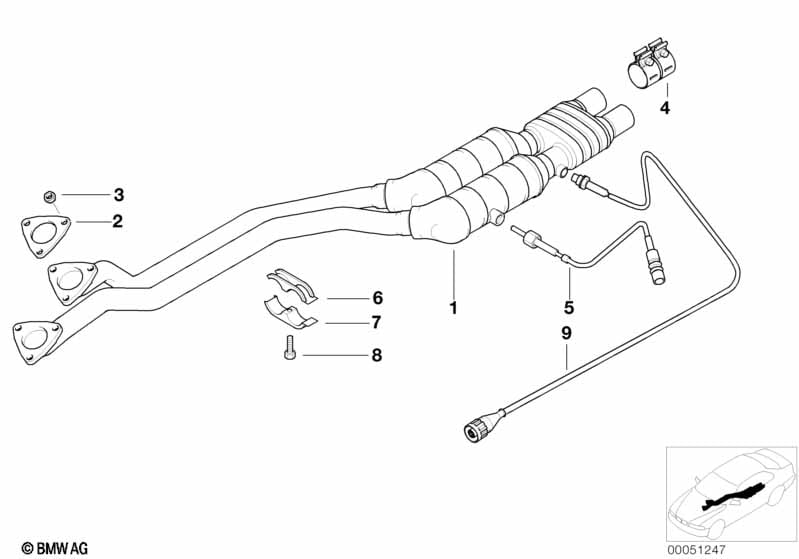

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 01 | RP exhaust pipe catalytic converter | EU2 | 1 | 09/1998 | 18101438773 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Clamping bush | D=55 X 70MM | 2 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 06 | Clamp upper | D=45MM/50MM | 1 | 18101433249 | $8.75 | Shop at ECS Tuning | ||||
| 07 | Clamp lower | D=45MM/50MM | 1 | 18101433250 | $8.55 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 09 | Lambda Monitor sensor | L=990MM | 2 | 09/1998 | 11781433940 | $215.65 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Catalytic converter/front silencer?
- This technical diagram illustrates the Catalytic converter/front silencer within the Exhaust system group for the 5 Series E39 528i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the RP exhaust pipe catalytic converter (Part #18101438773).
- Which models use the hardware listed in this Catalytic converter/front silencer?
- The hardware and components featured in the Catalytic converter/front silencer are specific to the 5 Series E39 528i produced during 1999. These technical specifications ensure that parts like the RP exhaust pipe catalytic converter (18101438773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Catalytic converter/front silencer assembly?
- Each item in the Catalytic converter/front silencer corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the RP exhaust pipe catalytic converter by locating its position on the schematic, which then links to the official BMW part number 18101438773 for the Exhaust system section.
