Exhaust system, rear for BMW 5 Series E39 523i (2000)

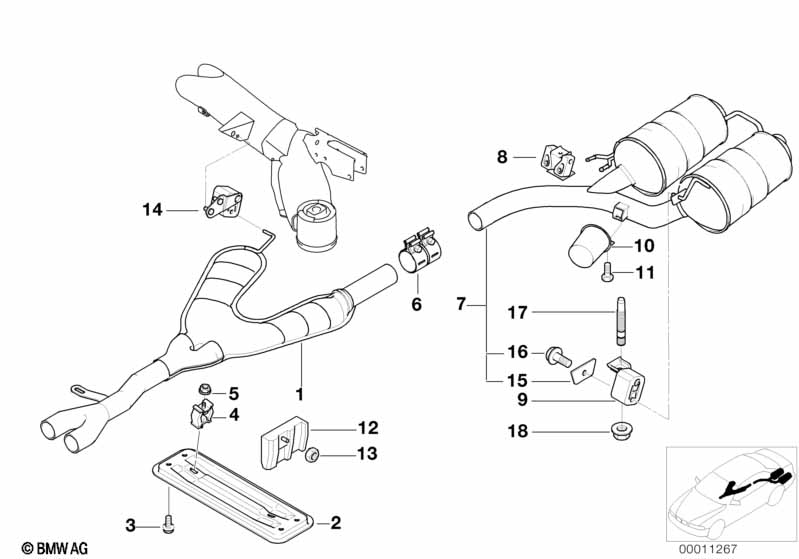

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center muffler | 1 | 09/1998 | 18107500189 | Shop at ECS Tuning | |||||
| 02 | Connecting support | 1 | 18211745300 | $17.63 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 1 | 18211723915 | $21.41 | Shop at ECS Tuning | |||||
| 05 | Collar nut | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 06 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| 07 | Rear muffler | 1 | 09/1998 | 18301427231 | $772.13 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 07 | Rear muffler | 1 | 03/1999 | 18307830434 | ENDED | Shop at ECS Tuning | ||||
| 09 | Suspension loop | 1 | 18201433957 | $15.04 | Shop at ECS Tuning | |||||
| 10 | Vibration absorber | 1 | 09/1998 | 18301436513 | $76.86 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Suspension loop | 1 | 18201435348 | $25.64 | ENDED, SI 001796(165) | Shop at ECS Tuning | ||||
| 15 | Bracket | 1 | 18201435402 | $3.53 | Shop at ECS Tuning | |||||
| 16 | Hex bolt with washer | M6X10-Z1 | 1 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Stud bolt | M8X50 | 1 | 18211433080 | $0.98 | Shop at ECS Tuning | ||||
| 18 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Center muffler (Part #18107500189).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Center muffler (18107500189) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Center muffler by locating its position on the schematic, which then links to the official BMW part number 18107500189 for the Exhaust system section.
