Catalytic converter/front silencer for BMW 7 Series E38 740i (2001)

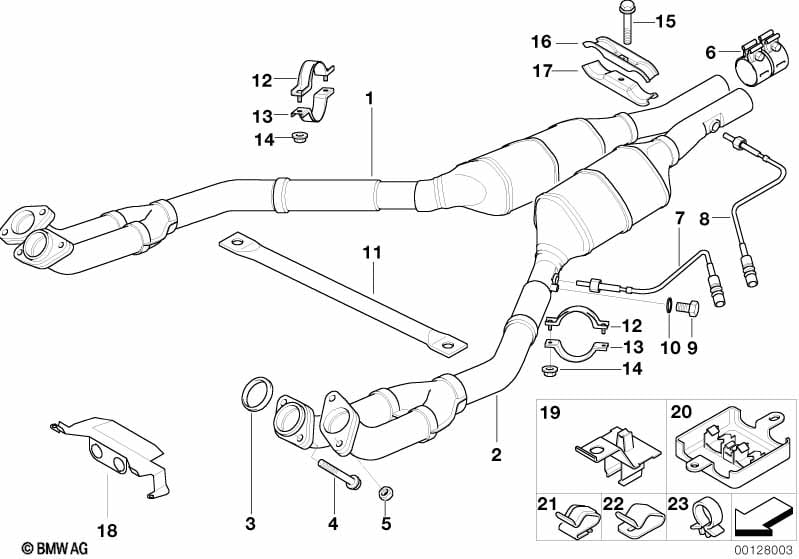

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust pipe front silencer | ZYL.1-4 | 1 | 18101704162 | $458.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Exhaust pipe front silencer | ZYL.5-8 | 1 | 18101704163 | $458.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket ring | 2 | 18301728734 | $11.80 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X65 | 4 | 11621716352 | $3.85 | Shop at ECS Tuning | ||||
| 05 | Collar nut | M8 | 4 | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
| 06 | Clamping bush | D=55 X 70MM | 2 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 07 | Regulating lambda probe | L=370MM | 2 | 11781247406 | $215.65 | +core | Shop at ECS Tuning | |||
| 20 | Lambda-probe bracket | 2 | 12521702965 | $3.52 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
