Exhaust system for BMW R45-R65LS..78-85 R45

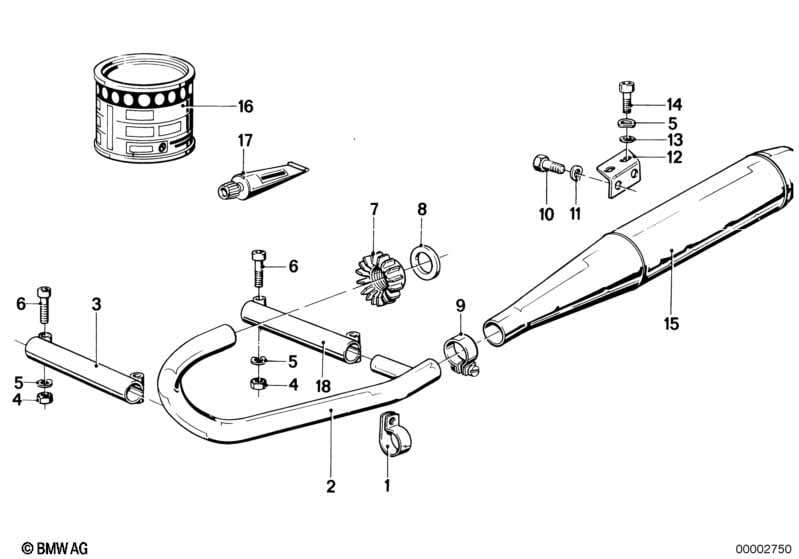

This Exhaust system technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe clamp left | 1 | 11/1982 | 18211238322 | $8.90 | ENDED | Shop at ECS Tuning | |||
| 01 | Pipe clamp right | 1 | 18211238274 | $8.81 | Shop at ECS Tuning | |||||
| 01 | Pipe clamp left | 1 | 11/1982 | 18212302070 | $8.74 | Shop at ECS Tuning | ||||
| 02 | Exhaust pipe left | 1 | 09/1980 | 18111238271 | $133.63 | +core | Shop at ECS Tuning | |||
| 02 | Exhaust pipe, right | 1 | 09/1980 | 18111238273 | $133.63 | +core | Shop at ECS Tuning | |||
| 02 | Exhaust pipe left | 1 | 09/1980 | 18111337217 | $131.58 | +core | Shop at ECS Tuning | |||
| 02 | Exhaust pipe, right | 1 | 09/1980 | 18111337218 | $131.58 | +core | Shop at ECS Tuning | |||
| 03 | Crossover | 1 | 18111238281 | $79.92 | +core | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 8 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | M6X30-8.8-ZNS | 4 | 31422311105 | $2.06 | Shop at ECS Tuning | ||||
| 07 | Nut | M48X2 | 2 | 18211335595 | $24.90 | Shop at ECS Tuning | ||||
| 08 | Clamp ring | 2 | 18211335598 | $14.11 | Shop at ECS Tuning | |||||
| 09 | Muffler clamp | 37MM | 2 | 18211238282 | $12.82 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X16-8.8-ZNS3 | 4 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Support | 2 | 18211233033 | $8.21 | Shop at ECS Tuning | |||||
| 13 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 14 | ISA screw | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Muffler, left | 1 | 18121238275 | $397.13 | ENDED, +core | Shop at ECS Tuning | ||||
| 15 | Muffler, right | 1 | 18121238276 | $397.13 | ENDED, +core | Shop at ECS Tuning | ||||
| 17 | Assembling paste | 100G | X | 18219062599 | Shop at ECS Tuning | |||||
| 18 | Transverse pipe rear | 1 | 09/1980 | 18111337234 | $79.92 | +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
