Catalytic converter/front silencer for BMW 5 Series E39 535i (1998)

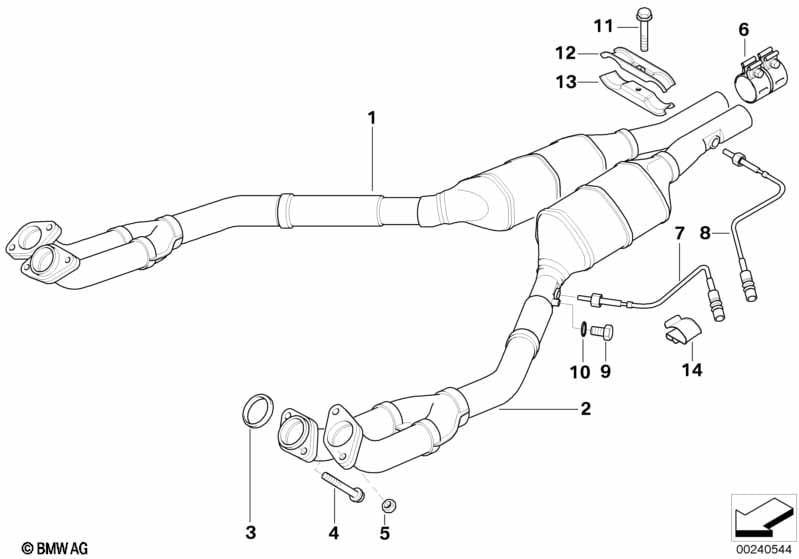

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe cat.conv.cylinder 1-4 | ZYL.1-4 | 1 | 09/1998 | 18307505320 | $1719.05 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust pipe front silencer | ZYL.1-4 | 1 | 18101704162 | $458.87 | ENDED | Shop at ECS Tuning | |||
| 02 | RP exhaust pipe cat.conv.cylinder 5-8 | ZYL.5-8 | 1 | 09/1998 | 18307505319 | $1719.05 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 02 | Exhaust pipe front silencer | ZYL.5-8 | 1 | 18101704163 | $458.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket ring | 2 | 09/1998 | 18301728734 | $11.80 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 2 | 18301728734 | $11.80 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X65 | 4 | 11621716352 | $3.85 | Shop at ECS Tuning | ||||
| 05 | Collar nut | M8 | 4 | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
| 06 | Clamping bush | D=55 X 70MM | 2 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
| 07 | Regulating lambda probe | L=370MM | 2 | 09/1998 | 11781247406 | $215.65 | +core | Shop at ECS Tuning | ||
| 11 | Hex bolt with washer | M8X75-Z1-ZNS3 | 1 | 09/1998 | 07119903947 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X55-U1 | 1 | 09/1998 | 07119905391 | $1.27 | Shop at ECS Tuning | |||
| 12 | Support | 1 | 09/1998 | 18201439930 | $11.80 | ENDED | Shop at ECS Tuning | |||
| 13 | Support | 1 | 09/1998 | 18201440068 | $10.21 | Shop at ECS Tuning | ||||
| 14 | Cable clamp | 4 | 09/1998 | 07149149842 | $0.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
