Catalytic converter/front silencer for BMW 3 Series E36 323ti (2000)

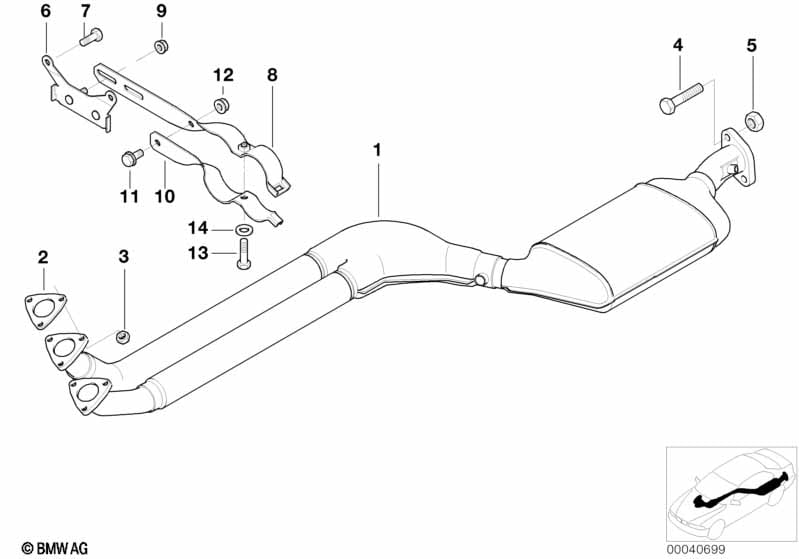

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust pipe catalytic converter | 1 | 01/1999 | 18301439734 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust pipe front silencer | 1 | 18101709087 | $439.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8 SW12 | 2 | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 06 | Bracket | GETRAG | 1 | 18311728547 | $5.59 | SI 230192468 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Exhaust support | 1 | 18311433165 | $8.98 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 18311433167 | $7.47 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M8X18-U1-8.8 | 1 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Hex nut | BM8-8-ZNNIV-SI | 1 | 07129904874 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Washer | 8,4X18X2MM | 1 | 07149180923 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
