Catalytic converter/front silencer for BMW 3 Series E46 318i (2001)

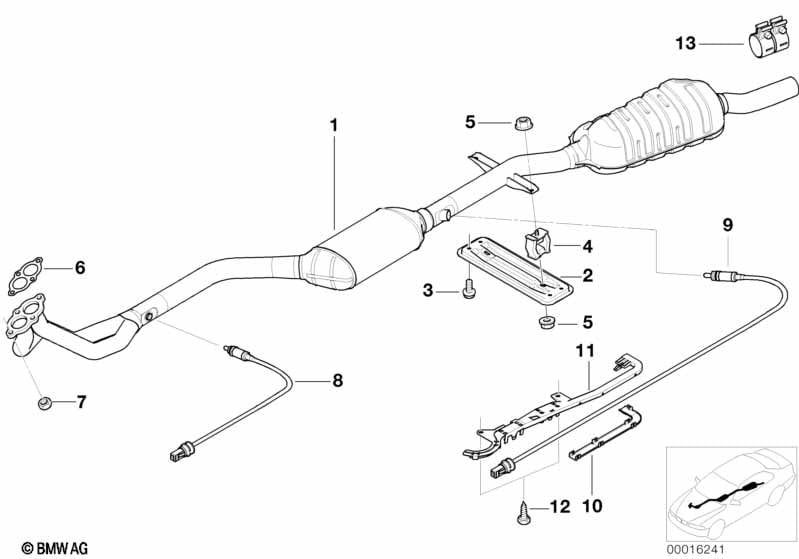

This Catalytic converter/front silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP catalytic converter w.center silencer | EU3 | 1 | 18301713633 | $1453.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Exhaust pipe front silencer | 1 | 18101712923 | $567.62 | Shop at ECS Tuning | |||||
| For vehicles with EU2 exhaust emissions standard |
S168A=Yes |
|||||||||
| 01 | Catalytic converter with center silencer | EU2 | 1 | 18301713615 | $1453.21 | ENDED | Shop at ECS Tuning | |||
| 02 | Connecting support | 1 | 18211436309 | $11.66 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 2 | 18211437236 | Shop at ECS Tuning | ||||||
| 05 | Flange nut | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Regulating lambda probe | L=370MM | 1 | 11781247406 | $215.65 | +core | Shop at ECS Tuning | |||
| 09 | Lambda Monitor sensor | L=955MM > 765MM | 1 | 11781739845 | $215.65 | Shop at ECS Tuning | ||||
| 10 | Cable guide | 1 | 11781716343 | +core | Shop at ECS Tuning | |||||
| 11 | Cable guide | 1 | 11781716380 | +core | Shop at ECS Tuning | |||||
| 12 | Hex head screw | ST6,3X16-C-Z2-Z | 2 | 07119916966 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 13 | Clamping bush | D=60 X 70MM | 1 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
