Front muffler for BMW 3 Series E46 328i (2000)

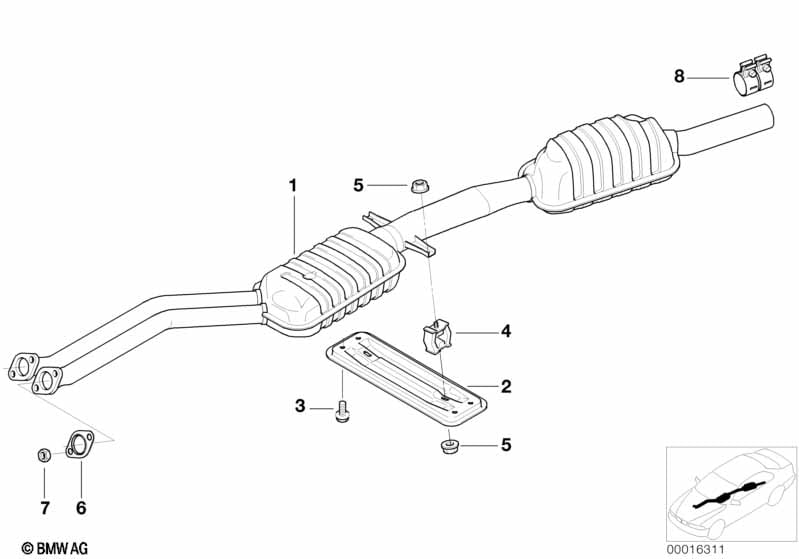

This Front muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front muffler | 1 | 18301437600 | $624.38 | Shop at ECS Tuning | |||||
| 02 | Connecting support | 1 | 18211436309 | $11.66 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 2 | 18211745426 | $21.41 | Shop at ECS Tuning | |||||
| 05 | Flange nut | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Flat gasket | 2 | 12/1998 | 18301440183 | $11.93 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt | M10X40-SW16 | 4 | 12/1998 | 11621427586 | $21.57 | Shop at ECS Tuning | |||
| -- | Hex nut | M10 | 4 | 12/1998 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 07 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Front muffler?
- This technical diagram illustrates the Front muffler within the Exhaust system group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Front muffler (Part #18301437600).
- Which models use the hardware listed in this Front muffler?
- The hardware and components featured in the Front muffler are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Front muffler (18301437600) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front muffler assembly?
- Each item in the Front muffler corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Front muffler by locating its position on the schematic, which then links to the official BMW part number 18301437600 for the Exhaust system section.
