Rear muffler for BMW 3 Series E46 318d (2005)

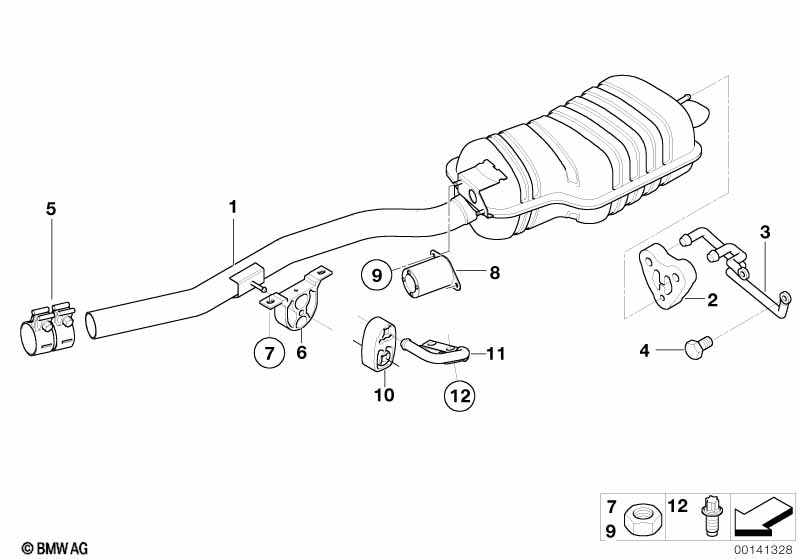

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 10/2003 | 18317794050 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Rear muffler | 1 | 10/2003 | 18317794595 | Shop at ECS Tuning | |||||
| 02 | Suspension loop | 1 | 18212247708 | Shop at ECS Tuning | ||||||
| 03 | Holder | 1 | 18212247709 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M8X12-8.8-ZNS3 | 2 | 07119906018 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Vibration absorber | 1 | 09/2003 | 18107515325 | $75.81 | Shop at ECS Tuning | ||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 2 | 09/2003 | 07119905374 | Shop at ECS Tuning | ||||
| 10 | Suspension loop | 1 | 10/2003 | 18307793793 | Shop at ECS Tuning | |||||
| 11 | REAR SILENCER BRACKET, front | 1 | 10/2003 | 18307793823 | Shop at ECS Tuning | |||||
| 12 | Torx-bolt with washer | ASA M8X25 | 2 | 10/2003 | 51217062145 | $1.17 | Shop at ECS Tuning | |||
