Rear muffler for BMW 3 Series E46 328i (2000)

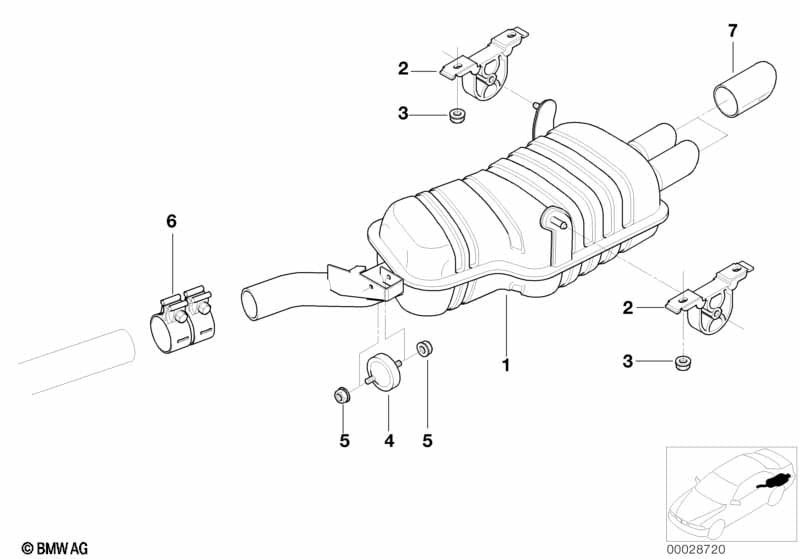

This Rear muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear muffler | 1 | 18101437602 | $554.67 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 01 | Rear muffler | 1 | 18101437601 | $554.67 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 2 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 03 | Self-locking collar nut | M8-8 ZNS3 | 4 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Vibration absorber | 1 | 18101437499 | $54.00 | +core | Shop at ECS Tuning | ||||
| 05 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Clamping bush | D=65 X 70MM | 1 | 18307536426 | $50.38 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 07 | Tailpipe tip, chrome | 2 | 18107500194 | $39.50 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Rear muffler?
- This technical diagram illustrates the Rear muffler within the Exhaust system group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Rear muffler (Part #18101437602).
- Which models use the hardware listed in this Rear muffler?
- The hardware and components featured in the Rear muffler are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Rear muffler (18101437602) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear muffler assembly?
- Each item in the Rear muffler corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Rear muffler by locating its position on the schematic, which then links to the official BMW part number 18101437602 for the Exhaust system section.
