Suspension parts exhaust for BMW 3 Series E46 330Ci (2006)

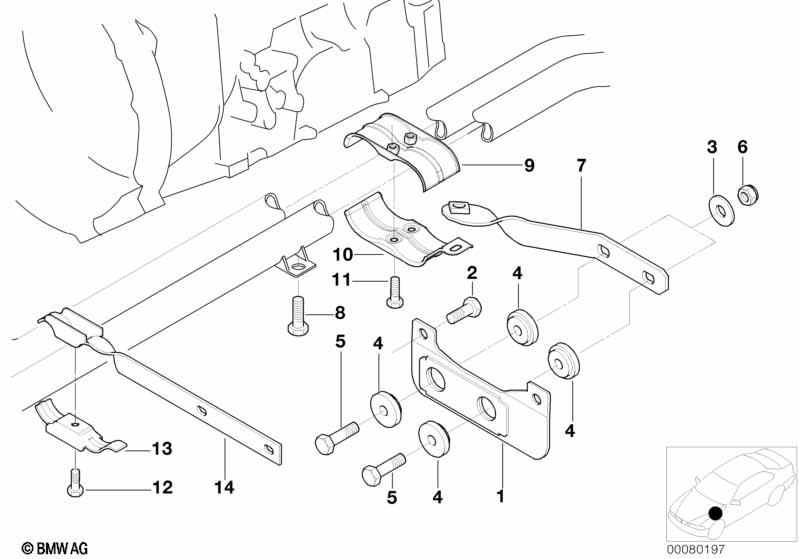

This Suspension parts exhaust technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket | 1 | 18207502344 | $5.85 | Shop at ECS Tuning | |||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 02 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 04 | Joint sleeve | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 06 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Exhaust support | 1 | 18301439148 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Clamp upper | 1 | 18201440287 | $10.62 | Shop at ECS Tuning | |||||
| 10 | Clamp lower | 1 | 18201440289 | $10.62 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Suspension parts exhaust?
- This technical diagram illustrates the Suspension parts exhaust within the Exhaust system group for the 3 Series E46 330Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Bracket (Part #18207502344).
- Which models use the hardware listed in this Suspension parts exhaust?
- The hardware and components featured in the Suspension parts exhaust are specific to the 3 Series E46 330Ci produced during 2006. These technical specifications ensure that parts like the Bracket (18207502344) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suspension parts exhaust assembly?
- Each item in the Suspension parts exhaust corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Bracket by locating its position on the schematic, which then links to the official BMW part number 18207502344 for the Exhaust system section.
